335070 Carburetor Float Bowl Gasket Set Fits Evinrude / Johnson V4, V6 (90-175 HP)

Product Overview

XR MARINE · CARBURETORS & REPAIR KITS

335070 Carburetor Float Bowl Gasket Set Fits Evinrude / Johnson V4, V6 (90-175 HP)

This XR Marine carburetor float bowl gasket set (OEM references 335070 and 0335070) is designed for replacing the float bowl gasket during carburetor service on specified Johnson and Evinrude 60° V4 and V6 outboard applications from 1991 onward.

The package supplies 3 carburetor float bowl gaskets. It is a dedicated gasket set rather than a complete carburetor rebuild kit, and the float chamber / carburetor bowl itself is a separate component not included in this set.

Product Specifications

Key product details for identification and comparison.

Fitment

The 335070 Carburetor Float Bowl Gasket Set from XR Marine fits Evinrude / Johnson V4 and V6 (90-175 HP) 60° bank outboard engines from 1991 onward in the applications listed below.

Verify the complete engine model designation on your identification plate, check the 60° bank angle and V4/V6 configuration requirements below, and match the full OEM reference number (335070 or 0335070) in your parts catalog. Engine horsepower and year alone are not sufficient to confirm fitment.

• Brand: Evinrude / Johnson (Application Brand Scope: Johnson) | Model / Configuration: V4 (60° bank) | Power: 90–175 HP | Year: 1991 onward (end year not stated)
  ✓ Fits
• Brand: Evinrude / Johnson (Application Brand Scope: Johnson) | Model / Configuration: V6 (60° bank) | Power: 90–175 HP | Year: 1991 onward (end year not stated)
  ✓ Fits
• Brand: Evinrude / Johnson (Application Brand Scope: Evinrude) | Model / Configuration: V4 (60° bank) | Power: 90–175 HP | Year: 1991 onward (end year not stated)
  ✓ Fits
• Brand: Evinrude / Johnson (Application Brand Scope: Evinrude) | Model / Configuration: V6 (60° bank) | Power: 90–175 HP | Year: 1991 onward (end year not stated)
  ✓ Fits

OEM & Part Number References

Use the complete reference number, including its suffix, when comparing parts. Reference numbers do not confirm that every version is interchangeable.

What's Included

Check the supplied components before planning your repair.

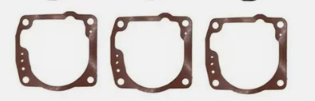

• Carburetor Float Bowl Gasket — Quantity: 3 (OEM references: 335070; 0335070)

Installation Guide

General installation overview. Follow the service manual for your exact engine and carburetor configuration. Fuel-system work requires the appropriate skills and precautions.

1. Preparation & Part Verification: Shut off the engine, allow it to cool completely, and isolate the fuel supply and ignition system in a well-ventilated area away from any ignition sources. Before opening the carburetor, verify your engine model plate and confirm that the 3 supplied gaskets match OEM reference 335070 or 0335070 for your float bowl design.
2. Float Bowl Access & Surface Inspection: Follow your service manual to safely drain remaining fuel and access the carburetor float chamber (bowl). Remove the old float bowl gasket and clean the mating channels and sealing surfaces carefully without gouging or warping the bowl or carburetor body. Compare the new gasket profile directly against the original gasket and the float bowl groove to verify an exact match.
3. Gasket Seating & Leak Check: Seat the new float bowl gasket evenly into its mating position without twisting or pinching, then reassemble the float bowl according to the sequence and fastener requirements in your service manual. Restore the fuel supply and prime the system while inspecting closely around the float bowl seam for any fuel seepage before starting the engine with proper cooling water supply. Stop immediately if any leak occurs.

Before You Order

A careful fitment check helps you choose the right part the first time.

• Match the full engine model designation on the identification plate.
• Check the individual year entry and any serial-number or version restrictions.
• Compare the complete OEM reference number, including its suffix. Horsepower or appearance alone is not enough.
• Confirm the package contents and the quantity needed for your repair.
• Verify that your Johnson or Evinrude V4 or V6 engine uses the 60° bank angle configuration (90–175 HP, 1991 onward).
• Distinguish the float bowl gasket from the float chamber / carburetor bowl itself or a full carburetor rebuild kit—this set contains 3 float bowl gaskets only.

Need help checking fitment? Have your engine identification details, the existing part number and clear photos ready when you contact XR Marine.
