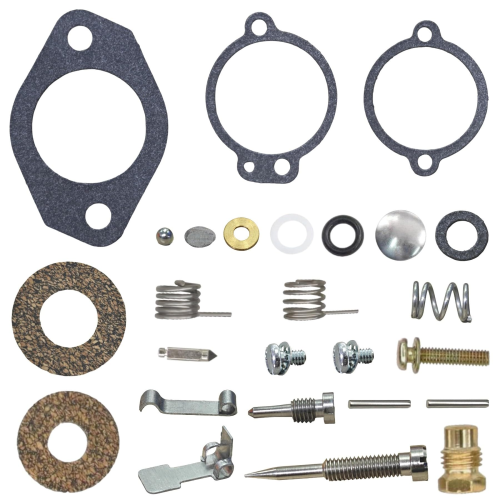

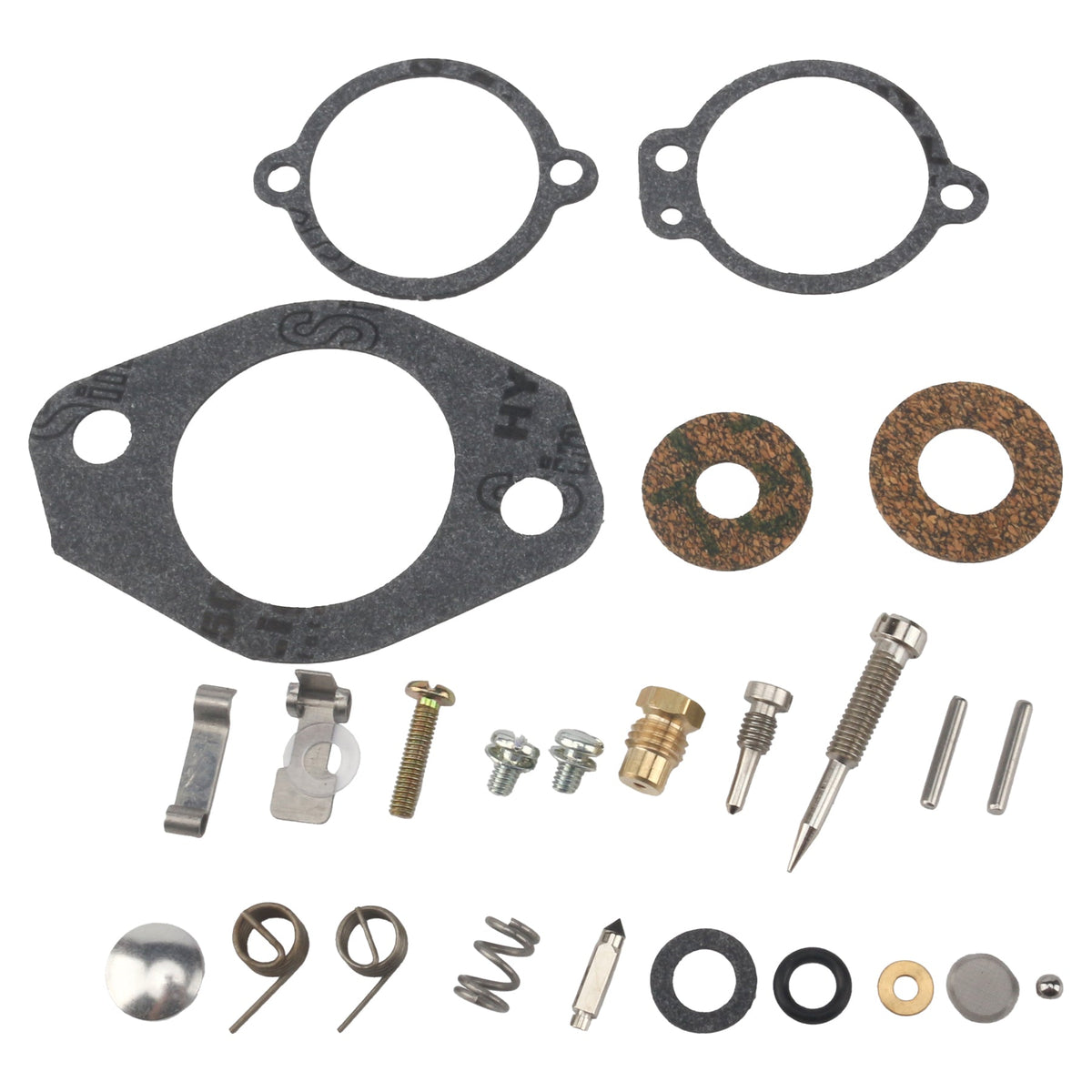

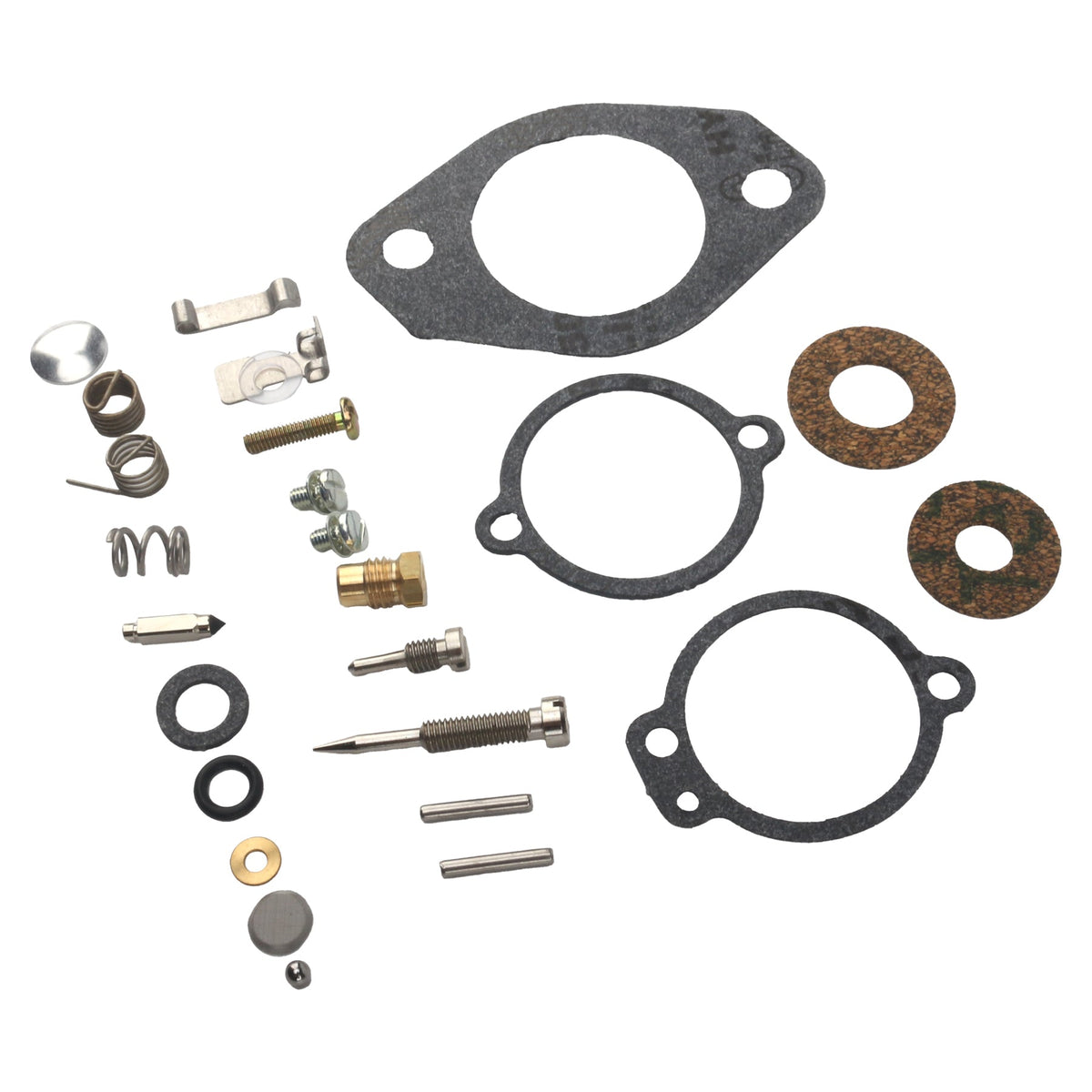

1395-5109-1 Carburetor Repair Kit Fits Mercury Mariner 650 (65 HP)

$26.50

Need help checking fitment?

Send us the product link, your engine brand, full model and serial number, and the reference on your original part. Include the year if known.

Ask XR Marine about this part

Shipping & delivery

Have a delivery question? Include the part reference, quantity, destination country and postal code so we can check the shipping details for your order.

Enquire about shipping

Returns & warranty support

For help with an order or product issue, send your order number, part reference and a description of the issue. Include photos where relevant.

Contact customer support

Product Overview

XR MARINE · CARBURETORS & REPAIR KITS

1395-5109-1 Carburetor Repair Kit Fits Mercury Mariner 650 (65 HP)

This XR Marine carburetor repair kit is intended for servicing and rebuilding listed Mercury Mariner engines equipped with specific WMK series carburetors. It is a repair kit for component-level carburetor maintenance, not a complete replacement carburetor assembly. Because fitment depends on the exact WMK carburetor version installed on the engine, verify both your engine application and the stamped carburetor designation before ordering.

Free shipping on all orders. Lifetime warranty for product quality defects. Normal wear and tear excluded.

Product Specifications

Key product details for identification and comparison.

Product Type Carburetor Repair Kit
Brand XR Marine
Primary OEM Reference 1395-5109-1
Target Engine Brand Mercury Mariner
Listed Engine Models 650, 850, 900, 1150, 1350, 1400, 1500 (plus 40 HP and 50 HP applications with specified WMK carburetors)
Carburetor Application Family WMK, limited to the listed versions

Fitment

The 1395-5109-1 Carburetor Repair Kit from XR Marine fits Mercury Mariner 40 HP, 50 HP, 650 (65 HP), 850 (85 HP), 900 (90 HP), 1150 (115 HP), 1350 (135 HP), 1400 (140 HP), and 1500 (150 HP) engines only when equipped with the exact WMK carburetor versions listed in the applications below.

Check your engine identification plate and compare the stamped WMK carburetor number against each individual entry below. Match the complete OEM reference number, including any suffix, before ordering; engine horsepower alone cannot confirm that this kit fits your carburetor.

  • Brand: Mercury Mariner | Power: 40 HP | Condition: Carburetor model: WMK 21
    ! Check conditions
  • Brand: Mercury Mariner | Power: 40 HP | Condition: Carburetor model: WMK 24
    ! Check conditions
  • Brand: Mercury Mariner | Power: 40 HP | Condition: Carburetor model: WMK 31
    ! Check conditions
  • Brand: Mercury Mariner | Power: 40 HP | Condition: Carburetor model: WMK 33
    ! Check conditions
  • Brand: Mercury Mariner | Power: 40 HP | Condition: Carburetor model: WMK 34
    ! Check conditions
  • Brand: Mercury Mariner | Power: 40 HP | Condition: Carburetor model: WMK 38
    ! Check conditions
  • Brand: Mercury Mariner | Power: 50 HP | Condition: Carburetor model: WMK 8
    ! Check conditions
  • Brand: Mercury Mariner | Model: 650 | Power: 65 HP | Condition: Carburetor model: WMK 5
    ! Check conditions
  • Brand: Mercury Mariner | Model: 650 | Power: 65 HP | Condition: Carburetor model: WMK 12
    ! Check conditions
  • Brand: Mercury Mariner | Model: 650 | Power: 65 HP | Condition: Carburetor model: WMK 13
    ! Check conditions
  • Brand: Mercury Mariner | Model: 650 | Power: 65 HP | Condition: Carburetor model: WMK 20
    ! Check conditions
  • Brand: Mercury Mariner | Model: 850 | Power: 85 HP | Condition: Carburetor model: WMK 4
    ! Check conditions
  • Brand: Mercury Mariner | Model: 850 | Power: 85 HP | Condition: Carburetor model: WMK 16
    ! Check conditions
  • Brand: Mercury Mariner | Model: 900 | Power: 90 HP | Condition: Carburetor model: WMK 23
    ! Check conditions
  • Brand: Mercury Mariner | Model: 900 | Power: 90 HP | Condition: Carburetor model: WMK 27
    ! Check conditions
  • Brand: Mercury Mariner | Model: 900 | Power: 90 HP | Condition: Carburetor model: WMK 30
    ! Check conditions
  • Brand: Mercury Mariner | Model: 900 | Power: 90 HP | Condition: Carburetor model: WMK 35
    ! Check conditions
  • Brand: Mercury Mariner | Model: 900 | Power: 90 HP | Condition: Carburetor model: WMK 39
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1150 | Power: 115 HP | Condition: Carburetor model: WMK 3
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1150 | Power: 115 HP | Condition: Carburetor model: WMK 10
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1150 | Power: 115 HP | Condition: Carburetor model: WMK 15
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1150 | Power: 115 HP | Condition: Carburetor model: WMK 18
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1150 | Power: 115 HP | Condition: Carburetor model: WMK 26
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1150 | Power: 115 HP | Condition: Carburetor model: WMK 28
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1150 | Power: 115 HP | Condition: Carburetor model: WMK 32
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1150 | Power: 115 HP | Condition: Carburetor model: WMK 36
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1150 | Power: 115 HP | Condition: Carburetor model: WMK 40
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1150 | Power: 115 HP | Condition: Carburetor model: WMK 41
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1350 | Power: 135 HP | Condition: Carburetor model: WMK 4
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1400 | Power: 140 HP | Condition: Carburetor model: WMK 7
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1400 | Power: 140 HP | Condition: Carburetor model: WMK 9
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1400 | Power: 140 HP | Condition: Carburetor model: WMK 25
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1400 | Power: 140 HP | Condition: Carburetor model: WMK 29
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1500 | Power: 150 HP | Condition: Carburetor model: WMK 11
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1500 | Power: 150 HP | Condition: Carburetor model: WMK 14
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1500 | Power: 150 HP | Condition: Carburetor model: WMK 19
    ! Check conditions
  • Brand: Mercury Mariner | Model: 1500 | Power: 150 HP | Condition: Carburetor model: WMK 22
    ! Check conditions

Fitment to Confirm

  • Brand: Mercury Mariner | Power: 40 HP | Condition: Carburetor designation: WMK 1.8 (ambiguous designation; confirm exact stamped carburetor number before ordering)
    ? Confirm fitment
  • Brand: Mercury Mariner | Model: 850 | Power: 85 HP | Condition: Carburetor model: WMK 17 (confirm exact carburetor and part number before ordering)
    ? Confirm fitment

OEM & Part Number References

Use the complete reference number, including its suffix, when comparing parts. Reference numbers do not confirm that every version is interchangeable.

Brand / Reference Source Part Number Reference
Mercury Mariner 1395-5109-1
Mercury Mariner 1395-51091
Mercury Mariner / Quicksilver 139551091
Mercury Mariner 1395-5109
Sierra 18-97352
Sierra 18-7021
Sierra 18-7061
GLM GLM40480
GLM 40480
RECMAR REC40480

Installation Guide

General installation overview. Follow the service manual for your exact engine and carburetor configuration. Fuel-system work requires the appropriate skills and precautions.

  1. Preparation and Identification: Ensure the engine is shut off and cool, disconnect the battery, and isolate the fuel supply in a well-ventilated workspace away from ignition sources. Before disassembly, confirm the stamped WMK carburetor version on the carburetor body and compare the supplied kit components against your service requirements.
  2. Disassembly and Component Inspection: Document fuel hose routing and throttle or choke linkage positions before removal. Disassemble the carburetor according to your Mercury Mariner service manual, clean the passages and sealing surfaces with appropriate carburetor cleaner, and lay out the original parts side by side with the new kit pieces to verify matching profiles.
  3. Reassembly and Leak Check: Replace only the serviceable components that match your specific WMK carburetor version and reassemble following the factory service manual procedures and adjustments. Reconnect the fuel line, prime the system to inspect for any fuel leaks before starting, and test run the engine only with a proper cooling water supply; shut down immediately if any fuel leak, binding linkage, or abnormal operation occurs.

Before You Order

A careful fitment check helps you choose the right part the first time.

  • Match the full engine model designation on the identification plate.
  • Check the individual application entry and any carburetor-version or serial-number restrictions.
  • Compare the complete OEM reference number, including its suffix. Horsepower or appearance alone is not enough.
  • Confirm the package contents and the quantity needed for your repair.
  • Verify the exact WMK carburetor version stamped on your carburetor body, preserving all numbers, letters, and suffixes.
  • Remember that this listing is a carburetor repair kit for servicing existing WMK carburetors, not a complete carburetor assembly.

Need help checking fitment? Have your engine identification details, the existing part number and clear photos ready when you contact XR Marine.

Ask XR Marine About Fitment

Why XR Marine

Carburetors are our focus. Fitment comes first.

XR Marine specializes in marine carburetors, carburetor repair kits and the related parts needed for these repairs. We keep our focus on this product line so that product information stays centered on the details that matter: engine applications, complete part-number references and what is included.

Use our individual fitment entries and part references to compare your application, then contact XR Marine if you need help before ordering.

Shipping

Free shipping on all orders. No minimum order value.

For questions about delivery to your destination or delivery timing, contact XR Marine before placing your order.

Contact XR Marine About Shipping

Lifetime Warranty

XR Marine provides lifetime warranty coverage for product quality defects. Normal wear and tear is excluded.

  • Covered: product quality defects.
  • Not covered: normal wear and tear.

Contact XR Marine for warranty assistance. Having your order details and a description of the issue available can help us understand your request.

Contact XR Marine About Warranty

Frequently Asked Questions

Answers to common questions about this product and its application.

Can I select this repair kit based only on my Mercury Mariner engine horsepower?

No. Engine horsepower alone is not enough to identify the right kit. Mercury Mariner engines across 40 HP to 150 HP used multiple carburetor configurations, and this kit only fits the specific WMK carburetor versions listed in our fitment section.

How do I check if my WMK carburetor is covered?

Locate the WMK model designation stamped on your carburetor body and compare the full number, along with your engine model and horsepower, against each individual entry in the Fitment section. If your carburetor is marked near an ambiguous designation such as WMK 1.8 or WMK 17, contact XR Marine with photos and engine details to confirm before ordering.

Is this product a complete replacement carburetor or a repair kit?

This product is a carburetor repair kit for servicing and rebuilding an existing listed WMK carburetor. It is not a complete replacement carburetor assembly.

Why are several OEM and aftermarket numbers listed in the reference table?

Numbers such as Mercury Mariner 1395-5109-1, 1395-51091, 139551091, 1395-5109, Sierra 18-97352, 18-7021, 18-7061, GLM 40480, and RECMAR REC40480 are provided for cross-checking part references. Always match the complete number including suffixes and verify your exact WMK carburetor version rather than assuming all reference numbers are unconditionally interchangeable.

How can I confirm the exact components and quantity included in the package?

Because detailed component counts are not itemized on this page, please contact XR Marine before ordering to confirm the exact supplied contents and how many kits you need for multi-carburetor engines.

What shipping and warranty policies apply to this kit?

All orders include free shipping with no minimum order value. XR Marine also provides a lifetime warranty covering product quality defects, while normal wear and tear is excluded.
