Product Overview
XR MARINE · CARBURETORS & REPAIR KITS

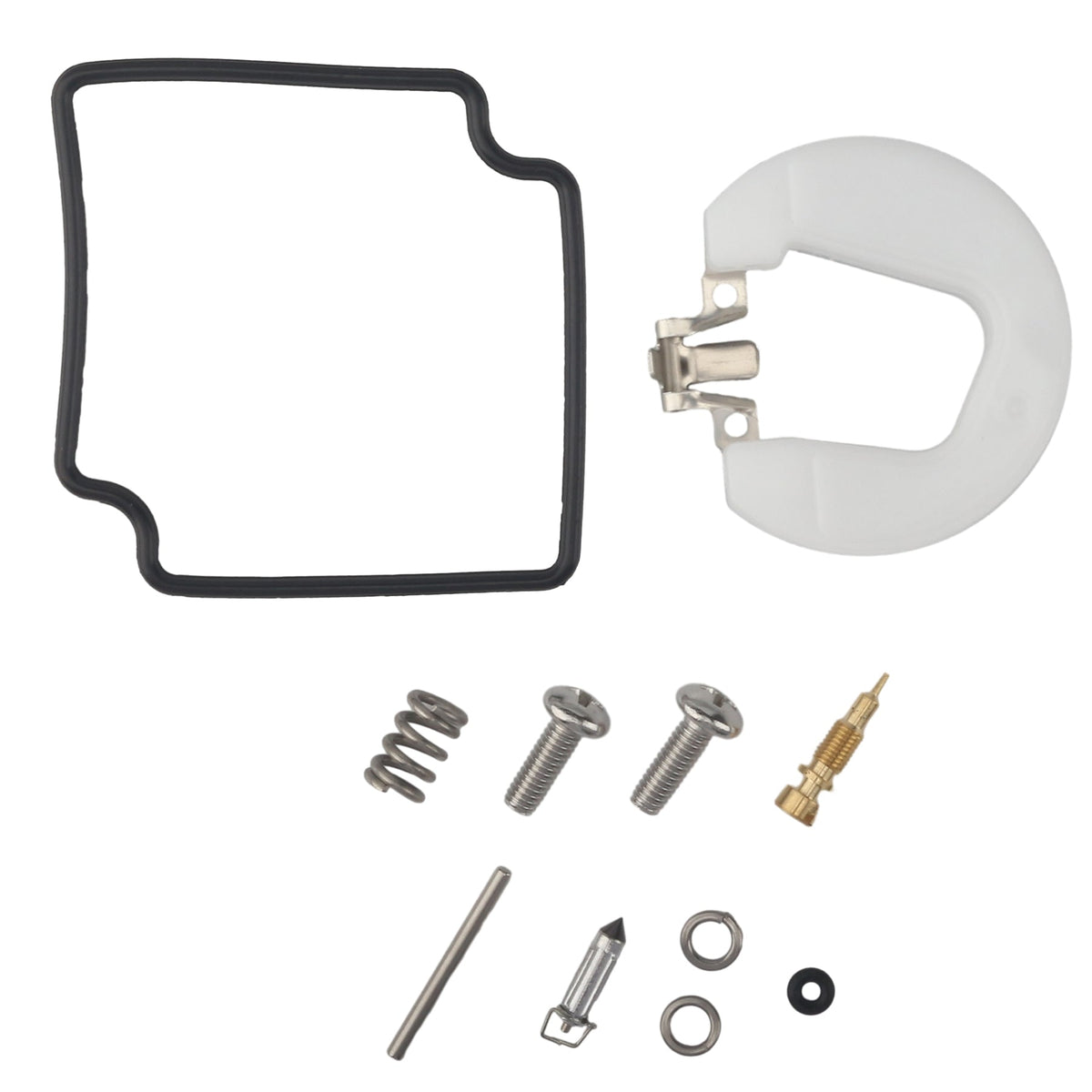

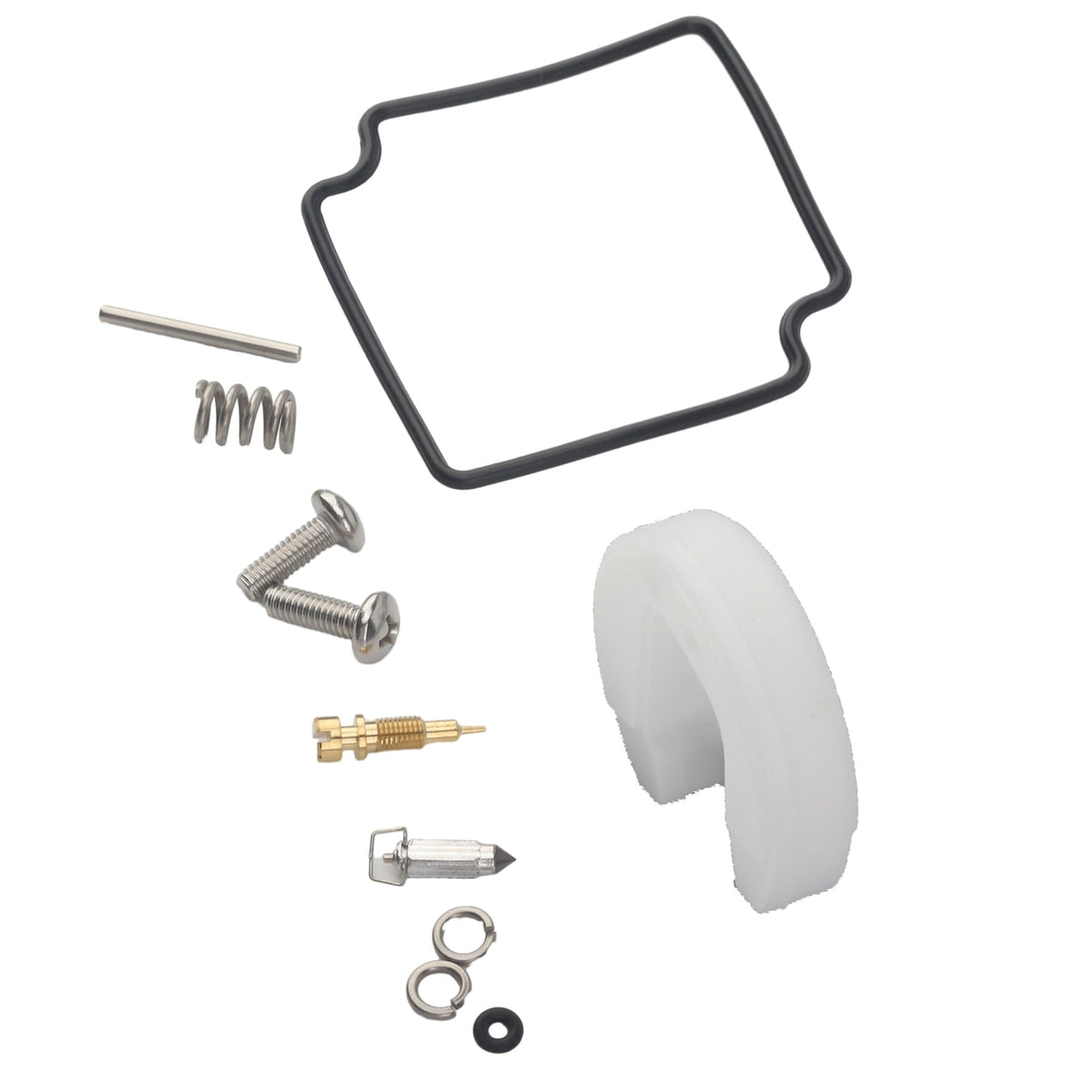

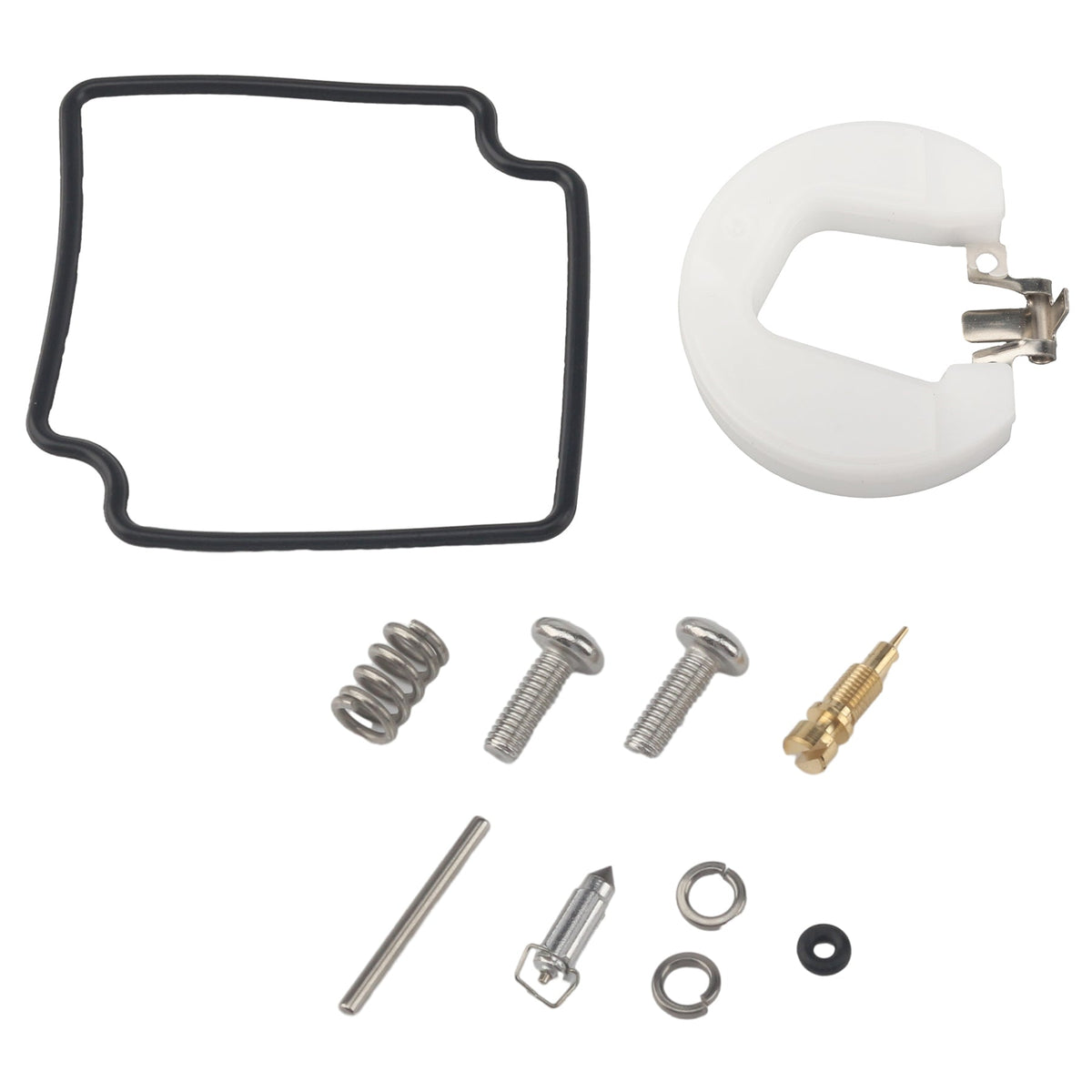

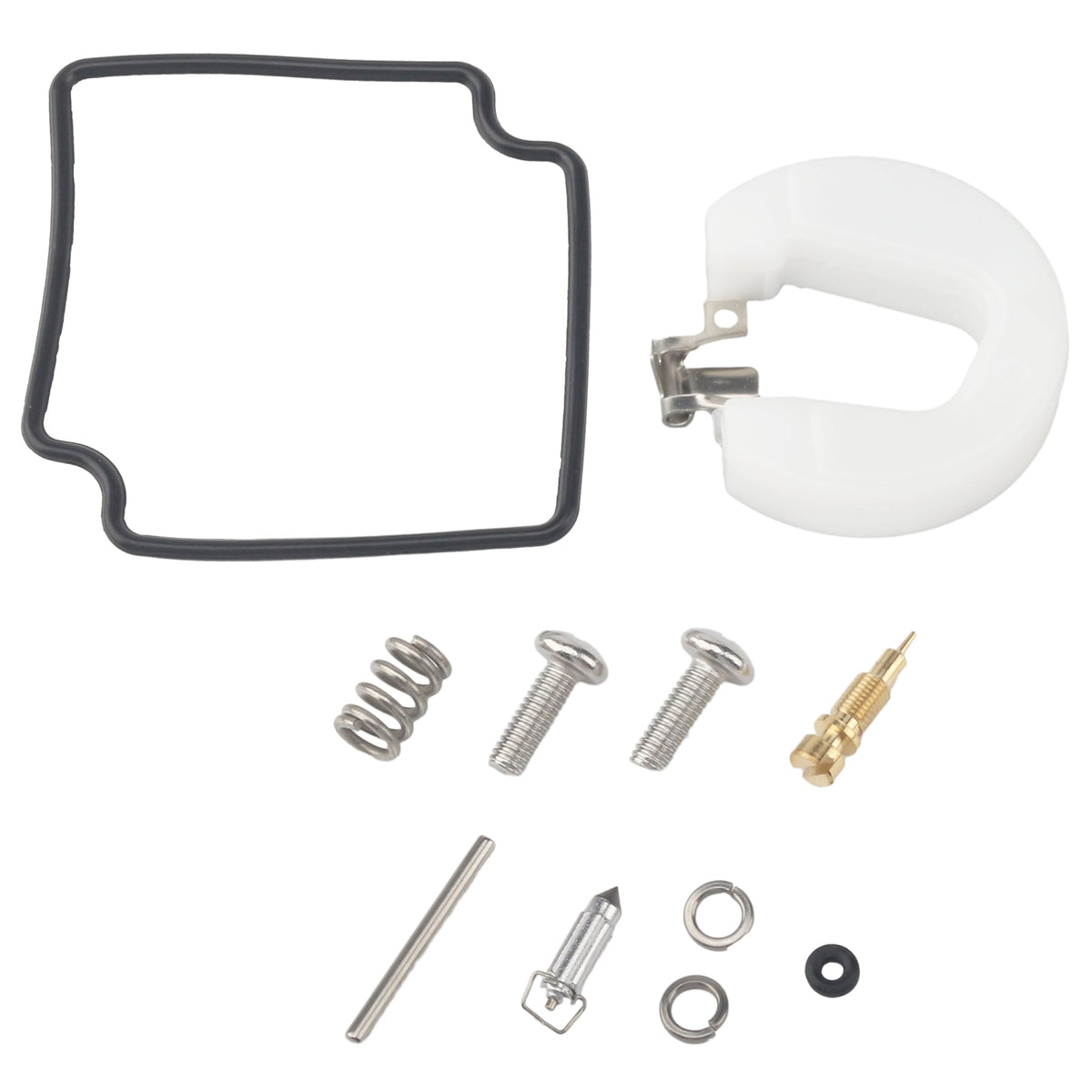

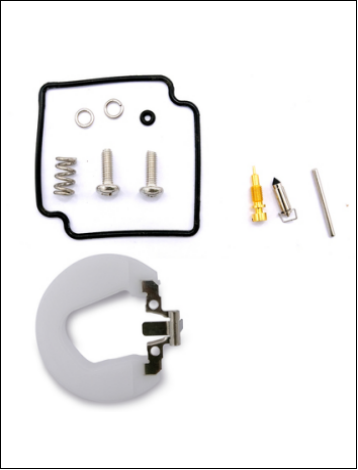

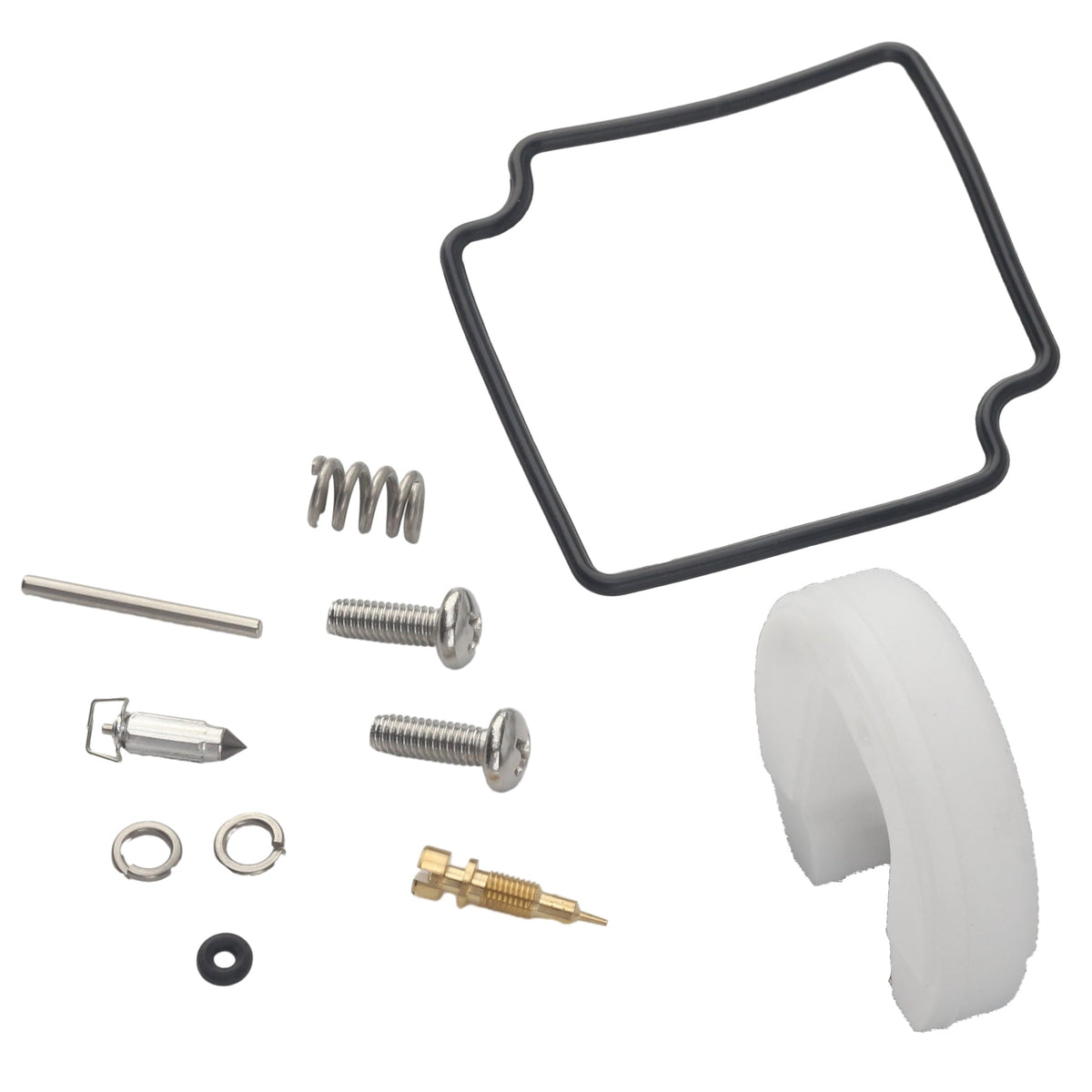

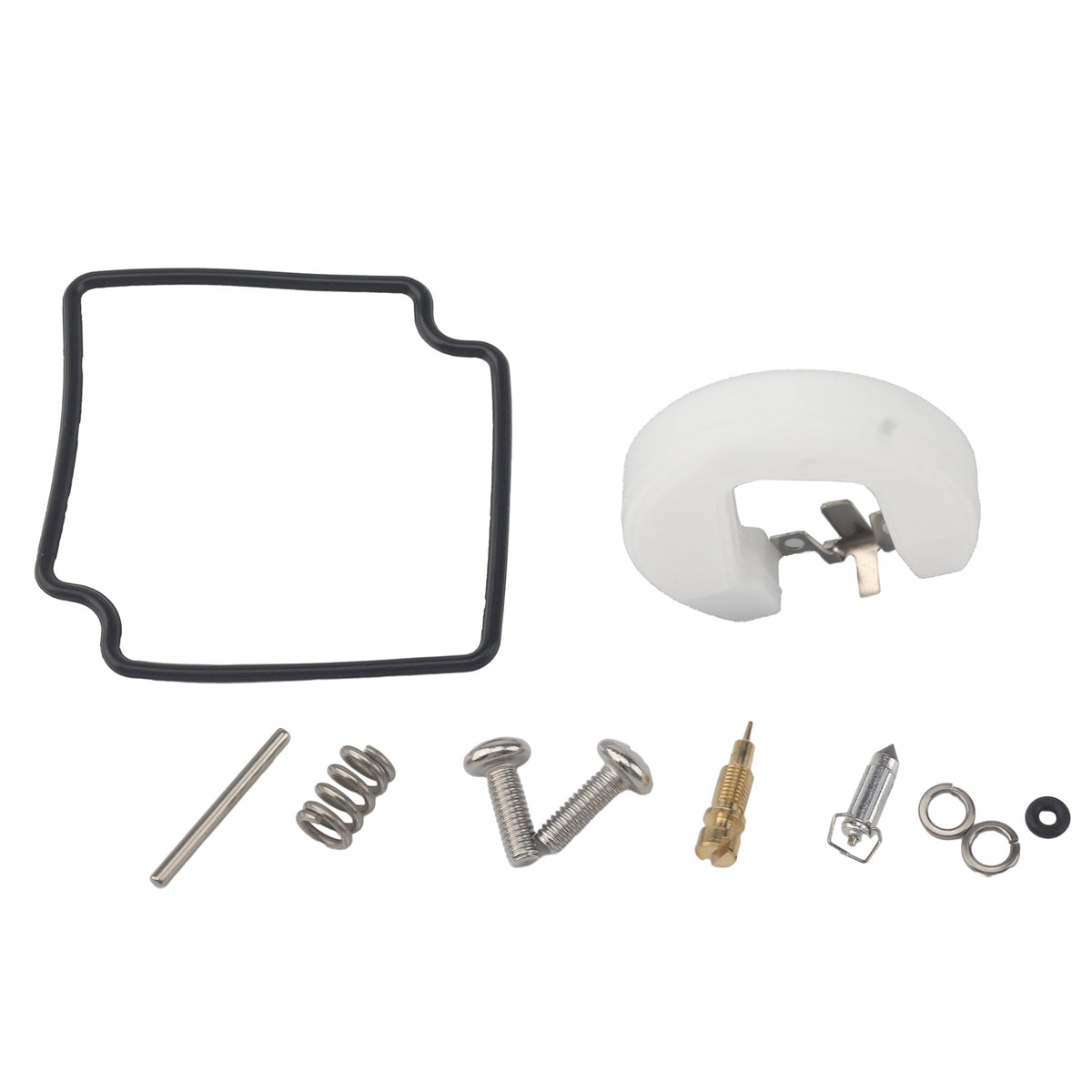

6BX-W0093-00 Carburetor Repair Kit Fits Yamaha Outboard F5A (5 HP)
This XR Marine carburetor repair kit is referenced to OEM number 6BX-W0093-00 for specified Yamaha Outboard 4-stroke applications, including F5A (5 HP) and F4 (4 HP) / F6 (6 HP) models from September 2009 onward. It is designed for carburetor service and seal repair rather than replacing the complete carburetor assembly. Before ordering, verify your full engine model designation, applicable build date for F4 or F6 engines, and complete repair-kit reference number.
Product Specifications
Key product details for identification and comparison.
Fitment
The 6BX-W0093-00 Carburetor Repair Kit from XR Marine fits Yamaha Outboard F5A (5 HP) 4-Stroke outboards, as well as Yamaha Outboard F4 (4 HP) and F6 (6 HP) 4-Stroke outboards from September 2009 onward, in the applications listed below.
Verify the complete model code on your engine identification plate against each individual entry below, compare the full OEM reference number including any suffix, and confirm the September 2009 onward production start date requirement for F4 and F6 engines. Horsepower alone is not sufficient to confirm carburetor repair kit compatibility.
-
Brand: Yamaha Outboard | Model: F5A | Power: 5 HP | Stroke: 4-Stroke | Note: Year not specified✓ Fits
-
Brand: Yamaha Outboard | Model: F4 | Power: 4 HP | Stroke: 4-Stroke | Restriction: From September 2009 onward (09/2009~); end date not specified; confirm build date on engine identification plate! Check conditions
-
Brand: Yamaha Outboard | Model: F6 | Power: 6 HP | Stroke: 4-Stroke | Restriction: From September 2009 onward (09/2009~); end date not specified; confirm build date on engine identification plate! Check conditions
OEM & Part Number References
Use the complete reference number, including its suffix, when comparing parts. Reference numbers do not confirm that every version is interchangeable.
Installation Guide
General installation overview. Follow the service manual for your exact engine and carburetor configuration. Fuel-system work requires the appropriate skills and precautions.
- Verify identification and prepare the work area: Confirm the engine model code, F4/F6 build date if applicable, and carburetor reference number before disassembly. Shut off the engine, allow it to cool completely, disconnect the fuel supply and ignition source per the service manual, and work in a well-ventilated area away from open flames or sparks.
- Disassemble and compare repair kit components: Record the routing of fuel hoses and throttle or choke linkage positions before removing the carburetor. Disassemble the carburetor according to your service manual, clean the passages as specified, and lay out the removed seals and parts next to the supplied kit components to verify profile and fitment before replacing only matching parts.
- Reassemble and check for leaks under proper cooling conditions: Reassemble the carburetor and reinstall it on the outboard following the manufacturer service manual procedures and adjustments. Reconnect the fuel supply and inspect all sealing surfaces for fuel leaks prior to starting. Perform test running only with a proper cooling water supply attached, and shut down immediately if any fuel leak, binding linkage, or abnormal operation occurs.
Before You Order
A careful fitment check helps you choose the right part the first time.
- Match the full engine model designation on the identification plate.
- Check the individual year entry and any serial-number or version restrictions.
- Compare the complete OEM reference number, including its suffix. Horsepower or appearance alone is not enough.
- Confirm the package contents and the quantity needed for your repair.
- For Yamaha F4 and F6 4-stroke engines, verify that the engine build date is from September 2009 onward.
- Note that this listing is for a carburetor repair kit, not a complete replacement carburetor assembly.
Need help checking fitment? Have your engine identification details, the existing part number and clear photos ready when you contact XR Marine.
Ask XR Marine About FitmentWhy XR Marine
Carburetors are our focus. Fitment comes first.
XR Marine specializes in marine carburetors, carburetor repair kits and the related parts needed for these repairs. We keep our focus on this product line so that product information stays centered on the details that matter: engine applications, complete part-number references and what is included.
Use our individual fitment entries and part references to compare your application, then contact XR Marine if you need help before ordering.
Shipping
Free shipping on all orders. No minimum order value.
For questions about delivery to your destination or delivery timing, contact XR Marine before placing your order.
Contact XR Marine About ShippingLifetime Warranty
XR Marine provides lifetime warranty coverage for product quality defects. Normal wear and tear is excluded.
- Covered: product quality defects.
- Not covered: normal wear and tear.
Contact XR Marine for warranty assistance. Having your order details and a description of the issue available can help us understand your request.
Contact XR Marine About WarrantyFrequently Asked Questions
Answers to common questions about this product and its application.
Is this product a complete carburetor assembly or a repair kit?
This product is a carburetor repair kit referenced to OEM number 6BX-W0093-00. It is not a complete replacement carburetor assembly.
Which Yamaha Outboard models does this carburetor repair kit fit?
It fits specified Yamaha Outboard 4-stroke applications: F5A (5 HP), and F4 (4 HP) and F6 (6 HP) models from September 2009 onward. Always confirm your exact engine model and carburetor version before ordering.
Why do the Yamaha F4 and F6 entries list a September 2009 condition?
For Yamaha F4 (4 HP) and F6 (6 HP) 4-stroke engines, this kit applies only to units from September 2009 onward (09/2009~). Check your engine identification details and parts catalog to verify that your outboard falls within this production period and uses 6BX-W0093-00.
Which reference numbers correspond to this repair kit?
This kit is referenced to Yamaha Outboard numbers 6BX-W0093-00 and 6BX-W0093-00-00, as well as RECMAR reference REC6BX-W0093-00. Always compare the full number including its suffix.
How can I check the exact components included in the package?
Because individual component counts are not itemized in the listing data, please contact XR Marine before ordering to confirm the exact supplied contents for your repair.
What shipping and warranty coverage apply to this kit?
XR Marine offers free shipping on all orders with no minimum order value, along with a lifetime warranty covering product quality defects (normal wear and tear is excluded).
