Product Overview
XR MARINE · CARBURETORS & REPAIR KITS

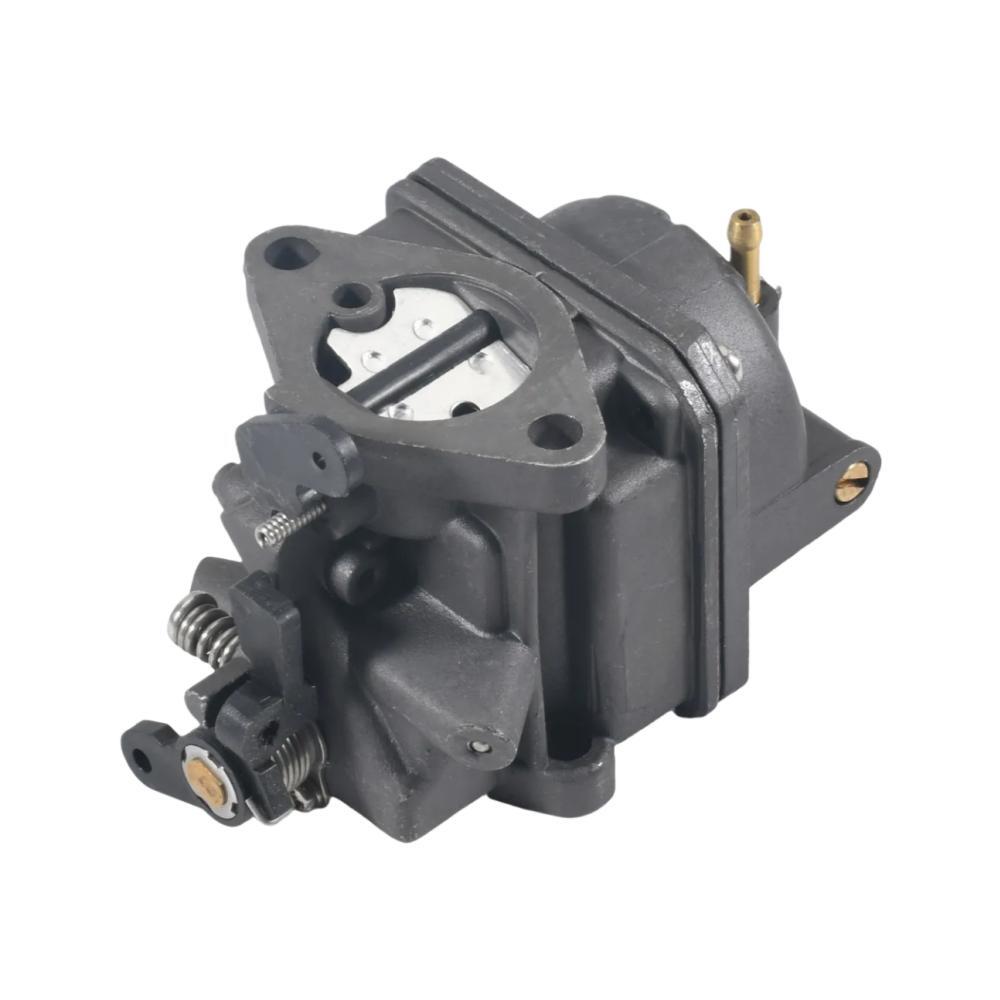

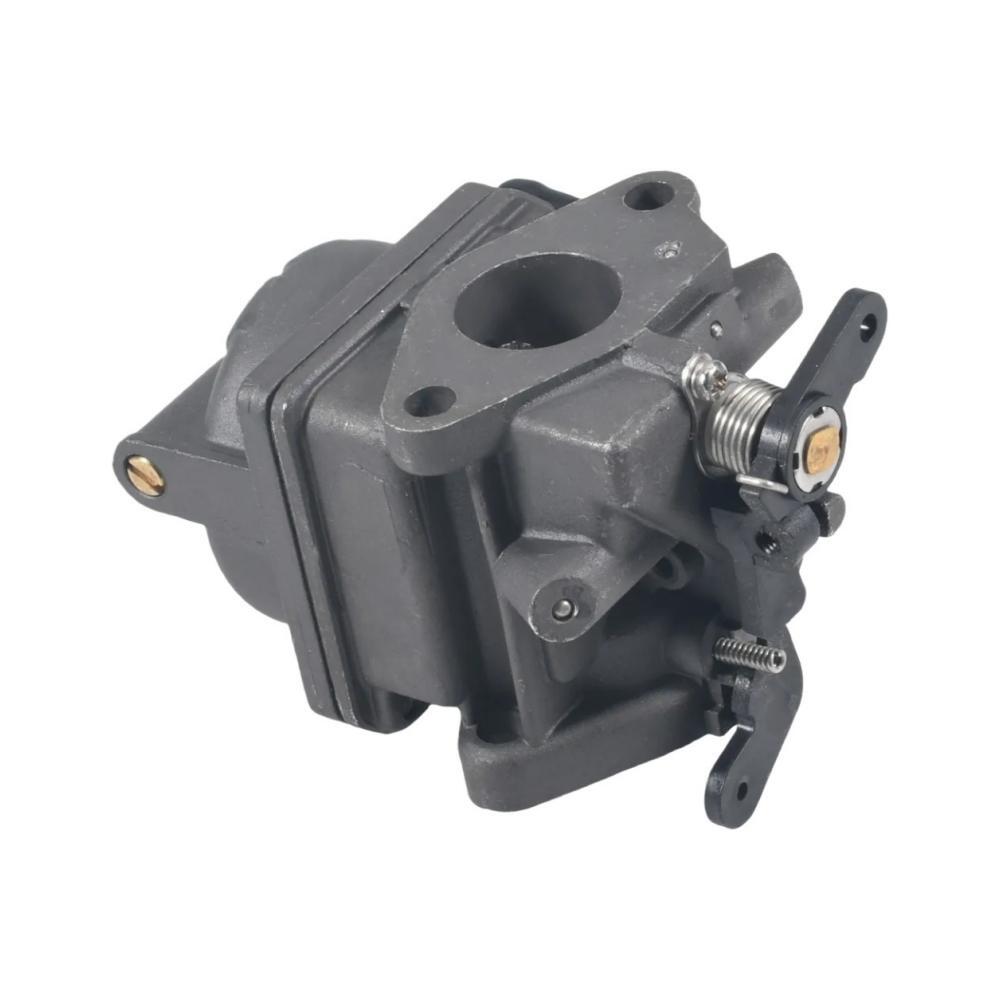

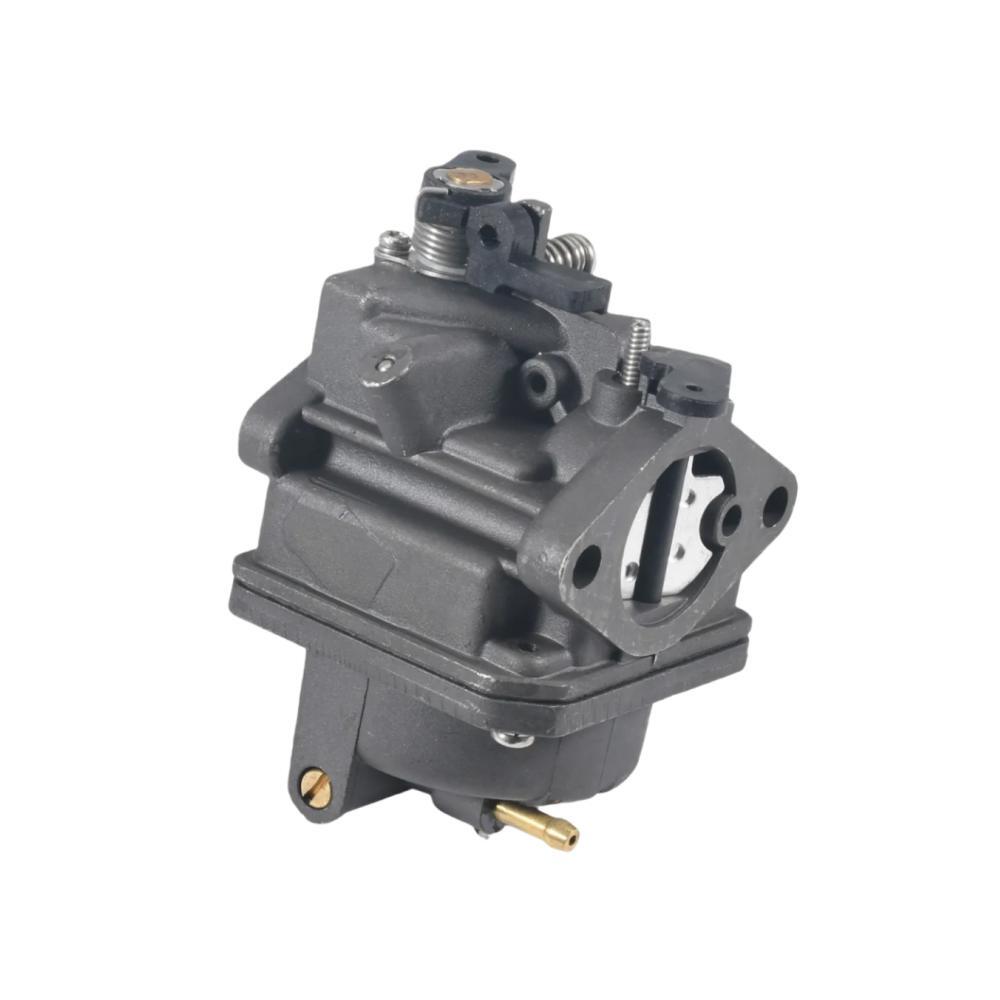

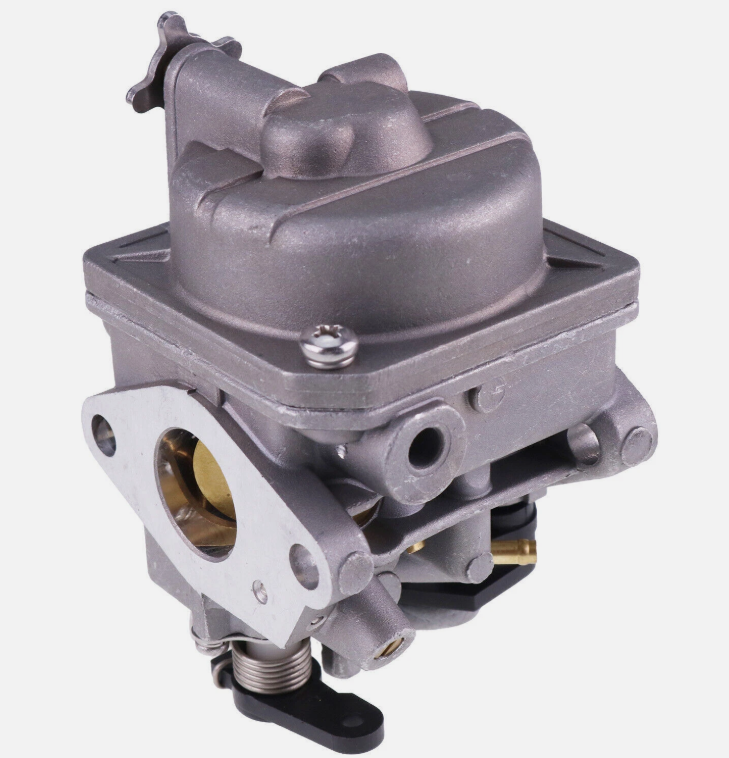

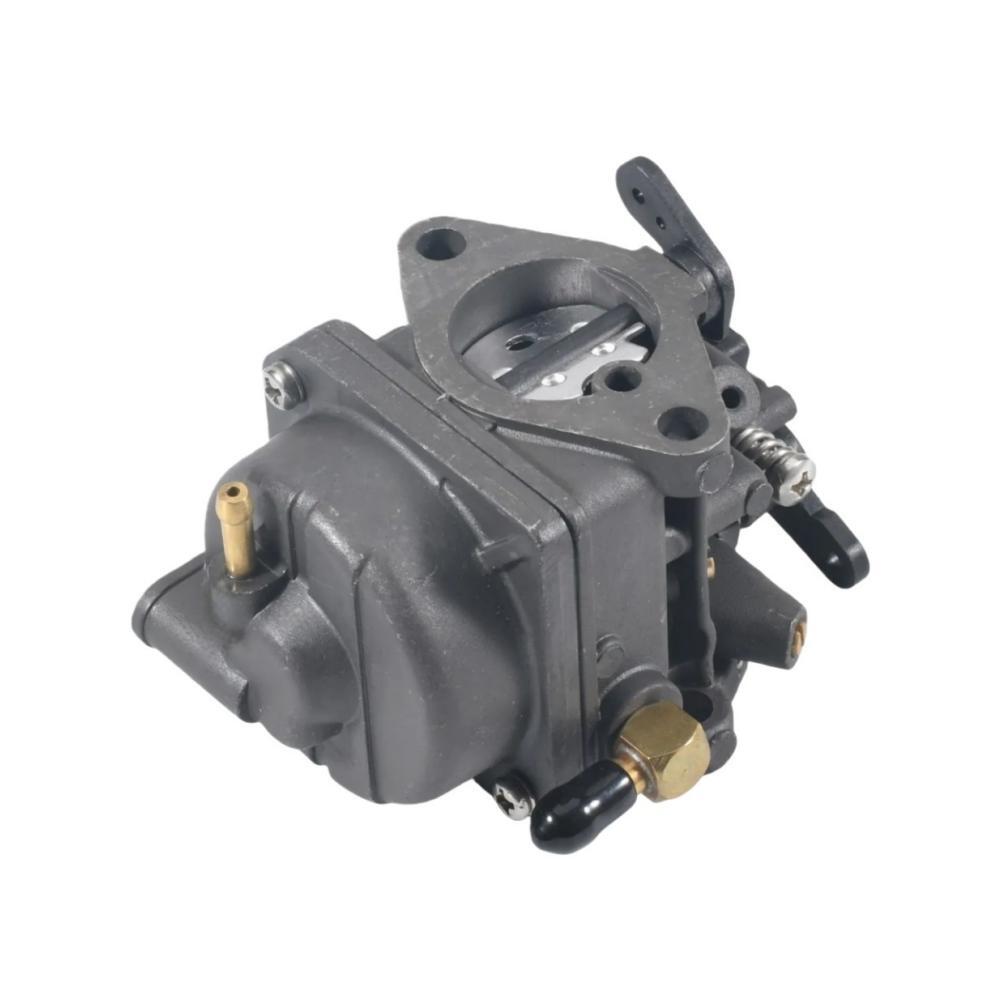

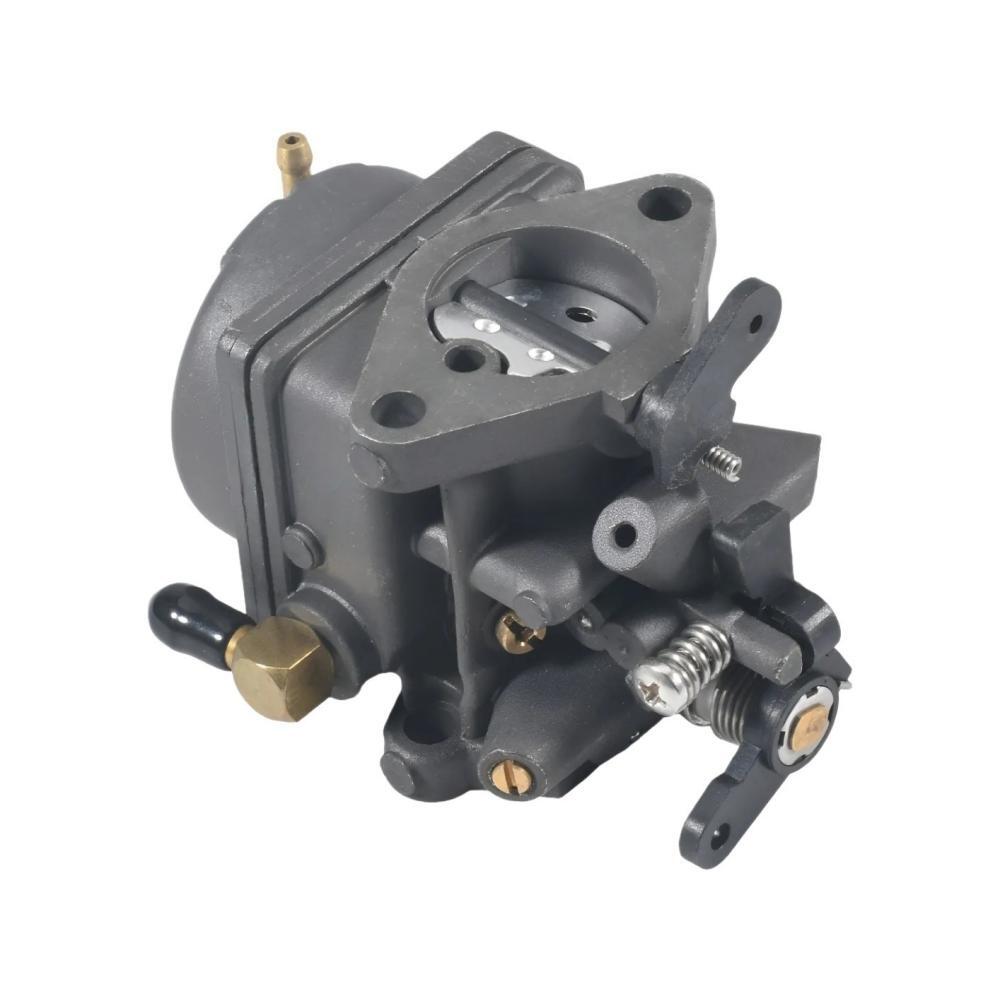

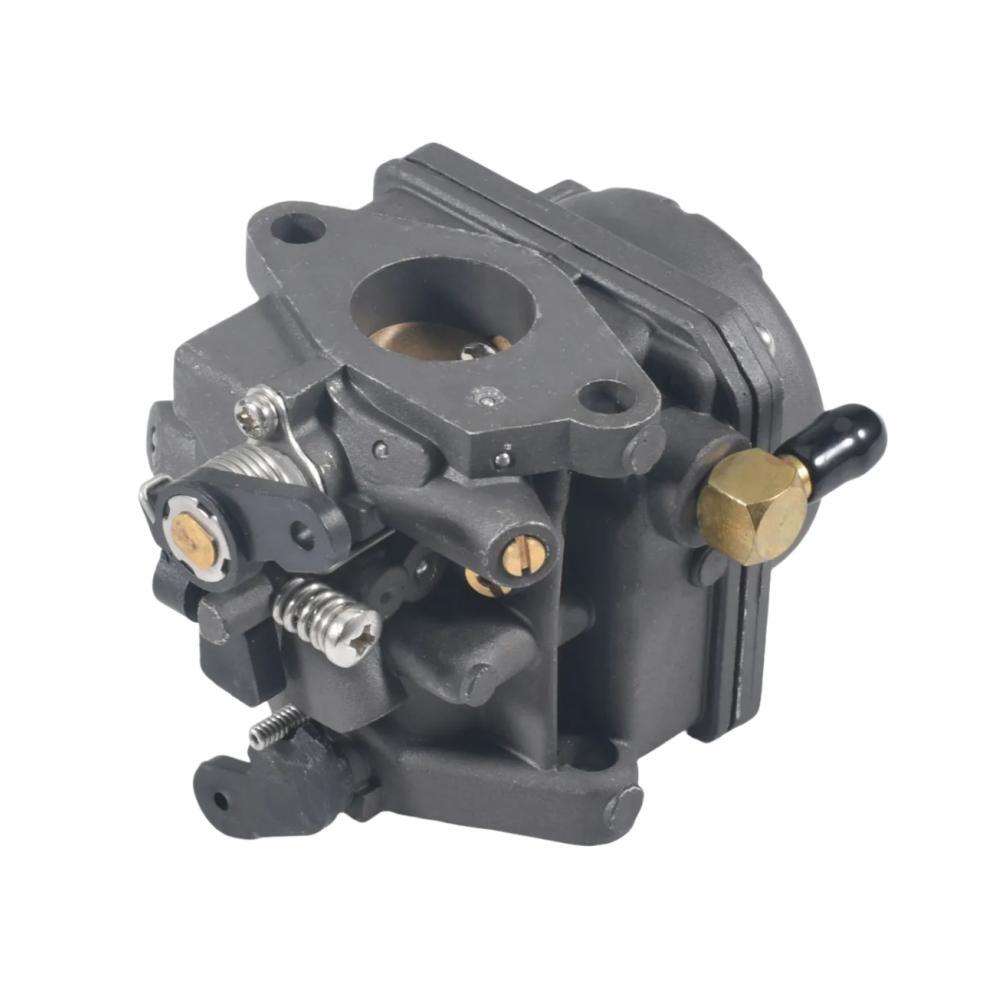

16100-ZV1-A00 Carburetor Fits Honda Marine Outboard BF5 (5 HP)
This XR Marine product is a replacement carburetor designed for the listed Honda Marine Outboard BF5 5 HP 4-stroke application, which also notes BC05B as an additional application code. It is supplied as a complete carburetor unit rather than a repair or seal kit.
When selecting this carburetor, match the complete OEM reference number—including the A00, A01, A02, or A03 suffix—along with your engine identification details rather than relying on the 5 HP rating alone.
Product Specifications
Key product details for identification and comparison.
Fitment
The 16100-ZV1-A00 carburetor from XR Marine fits Honda Marine Outboard BF5 (5 HP) 4-stroke outboard engines with additional application code BC05B in the application listed below.
Verify the complete model designation on your engine identification plate, match the full OEM carburetor reference number including its suffix (A00, A01, A02, or A03), and review the BC05B application code noted below. Do not select a replacement carburetor based on the 5 HP rating alone.
-
Brand: Honda Marine Outboard | Model: BF5 | Power: 5 HP | Stroke: 4-Stroke | Condition: Additional application code: BC05B! Check conditions
OEM & Part Number References
Use the complete reference number, including its suffix, when comparing parts. Reference numbers do not confirm that every version is interchangeable.
What's Included
Check the supplied components before planning your repair.
- Carburetor — Quantity: 1 (OEM Reference: 16100-ZV1-A00, 16100-ZV1-A01, 16100-ZV1-A02, 16100-ZV1-A03)
No additional bundle or accessory details are specified for this non-kit item.
Installation Guide
General installation overview. Follow the service manual for your exact engine and carburetor configuration. Fuel-system work requires the appropriate skills and precautions.
- Verify identification before disassembly: Check your engine identification plate, the BC05B application code, and the existing carburetor reference number against 16100-ZV1-A00, 16100-ZV1-A01, 16100-ZV1-A02, or 16100-ZV1-A03.
- Prepare a safe work area: Turn off the engine, allow it to cool completely, disconnect the spark plug lead, shut off or disconnect the fuel supply as instructed in your service manual, and work in a well-ventilated area away from ignition sources.
- Document routing and linkages: Before removing the existing carburetor, note or photograph the exact routing of fuel hoses, vent tubes, and throttle or choke linkage connections.
- Remove the existing carburetor: Drain residual fuel from the carburetor bowl according to the service manual, disconnect the fuel line and linkages carefully, and unbolt the carburetor from the intake mounting surface.
- Compare the replacement unit: Place the existing carburetor side by side with the replacement unit to confirm matching mounting flanges, linkage attachment points, and fuel inlet orientation, and verify that the mounting surfaces are clean and undamaged.
- Install and reconnect: Position the replacement carburetor on the engine following the service manual procedure, tighten the mounting fasteners evenly, reattach the throttle and choke linkages, and secure the fuel line.
- Check for leaks and test operation: Reconnect the fuel supply and inspect all connections for fuel leaks and smooth linkage movement. With the outboard properly supplied with cooling water, start the engine and follow your service manual for any required idle or operational checks; shut down immediately if leaks or binding occur.
Before You Order
A careful fitment check helps you choose the right part the first time.
- Match the full engine model designation on the identification plate.
- Verify the BC05B additional application code and any version or identification markings on your engine and existing carburetor.
- Compare the complete OEM reference number, including its suffix. Horsepower or appearance alone is not enough.
- Confirm the package contents and the quantity needed for your repair.
- Verify whether your repair calls for a complete replacement carburetor rather than a carburetor repair seal kit.
Need help checking fitment? Have your engine identification details, the existing part number and clear photos ready when you contact XR Marine.
Ask XR Marine About FitmentWhy XR Marine
Carburetors are our focus. Fitment comes first.
XR Marine specializes in marine carburetors, carburetor repair kits and the related parts needed for these repairs. We keep our focus on this product line so that product information stays centered on the details that matter: engine applications, complete part-number references and what is included.
Use our individual fitment entries and part references to compare your application, then contact XR Marine if you need help before ordering.
Shipping
Free shipping on all orders. No minimum order value.
For questions about delivery to your destination or delivery timing, contact XR Marine before placing your order.
Contact XR Marine About ShippingLifetime Warranty
XR Marine provides lifetime warranty coverage for product quality defects. Normal wear and tear is excluded.
- Covered: product quality defects.
- Not covered: normal wear and tear.
Contact XR Marine for warranty assistance. Having your order details and a description of the issue available can help us understand your request.
Contact XR Marine About WarrantyFrequently Asked Questions
Answers to common questions about this product and its application.
Is this product a complete carburetor or a repair seal kit?
This product is a replacement carburetor (non-kit), not a carburetor repair or seal kit. It includes 1 carburetor.
Which OEM reference numbers correspond to this carburetor?
This carburetor references Honda Marine Outboard OEM part numbers 16100-ZV1-A00, 16100-ZV1-A01, 16100-ZV1-A02, and 16100-ZV1-A03. Always compare the full number, including the A00, A01, A02, or A03 suffix, with your original part or parts catalog.
Can I order this carburetor based only on my engine being a Honda 5 HP 4-stroke?
No. Do not select the carburetor by the 5 HP rating alone. Confirm that your outboard matches the Honda Marine Outboard BF5 5 HP 4-stroke application with the BC05B additional application code and one of the listed OEM reference numbers.
Are extra mounting gaskets or installation accessories included?
The confirmed package contents list 1 carburetor. No additional bundle or accessory details are specified. If you need confirmation of supplied contents before ordering, please contact XR Marine.
What does the BC05B code mean in the fitment listing?
BC05B is noted as an additional application code for the listed Honda BF5 5 HP 4-stroke carburetor application. Check your original carburetor markings or engine parts lookup to verify that your configuration matches this code and reference series.
What shipping and warranty coverage apply to this carburetor?
XR Marine offers free shipping on all orders with no minimum order value, along with a lifetime warranty covering product quality defects (normal wear and tear is excluded).
