Product Overview
XR MARINE · CARBURETORS & REPAIR KITS

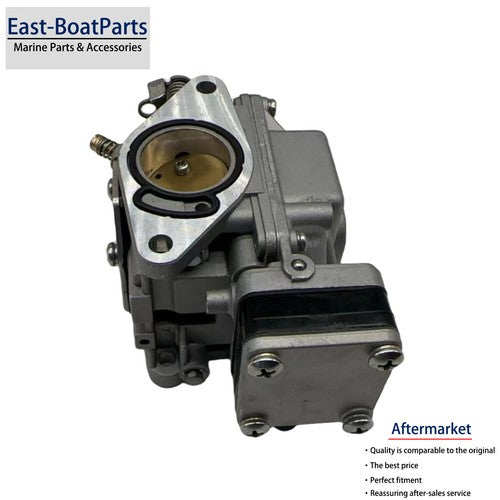

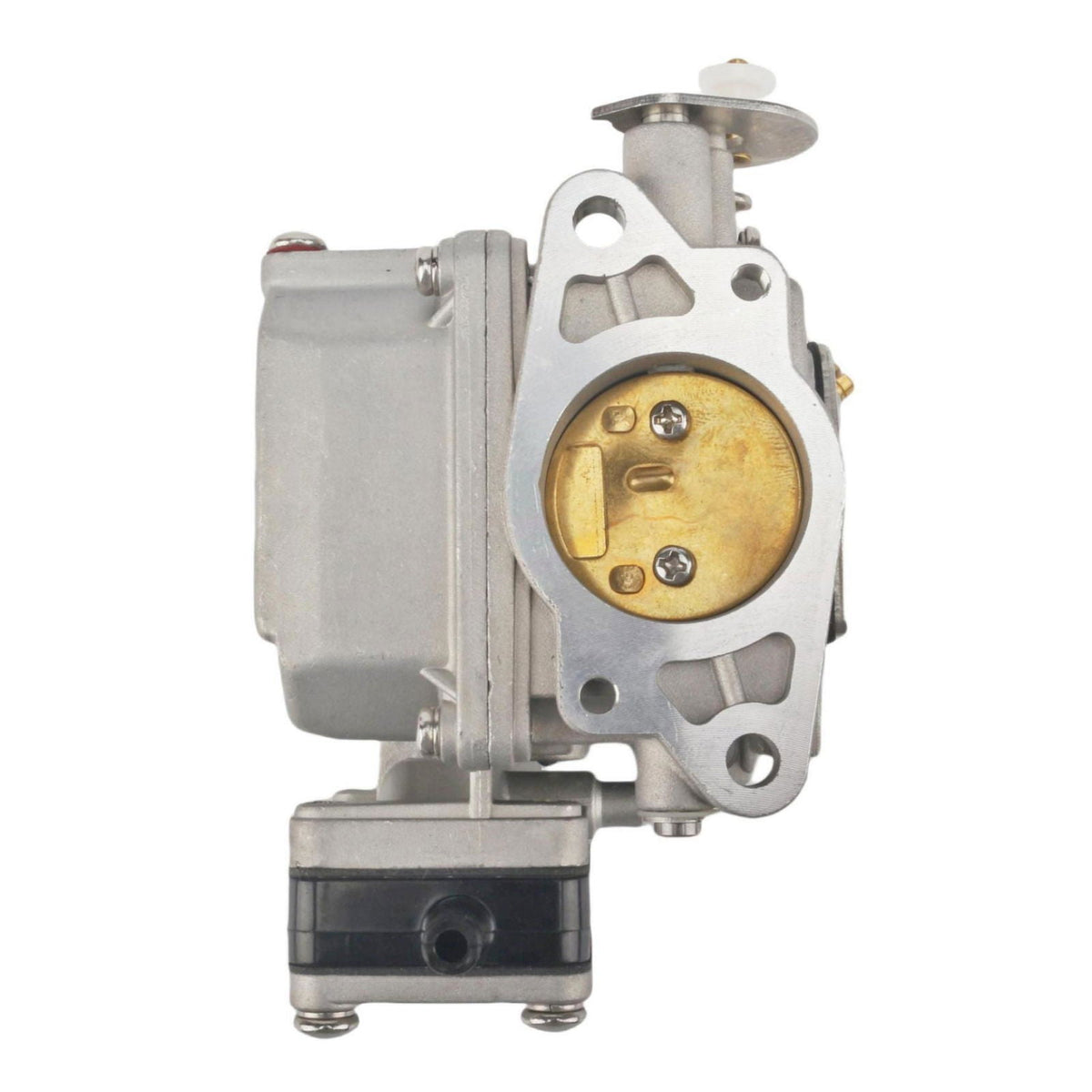

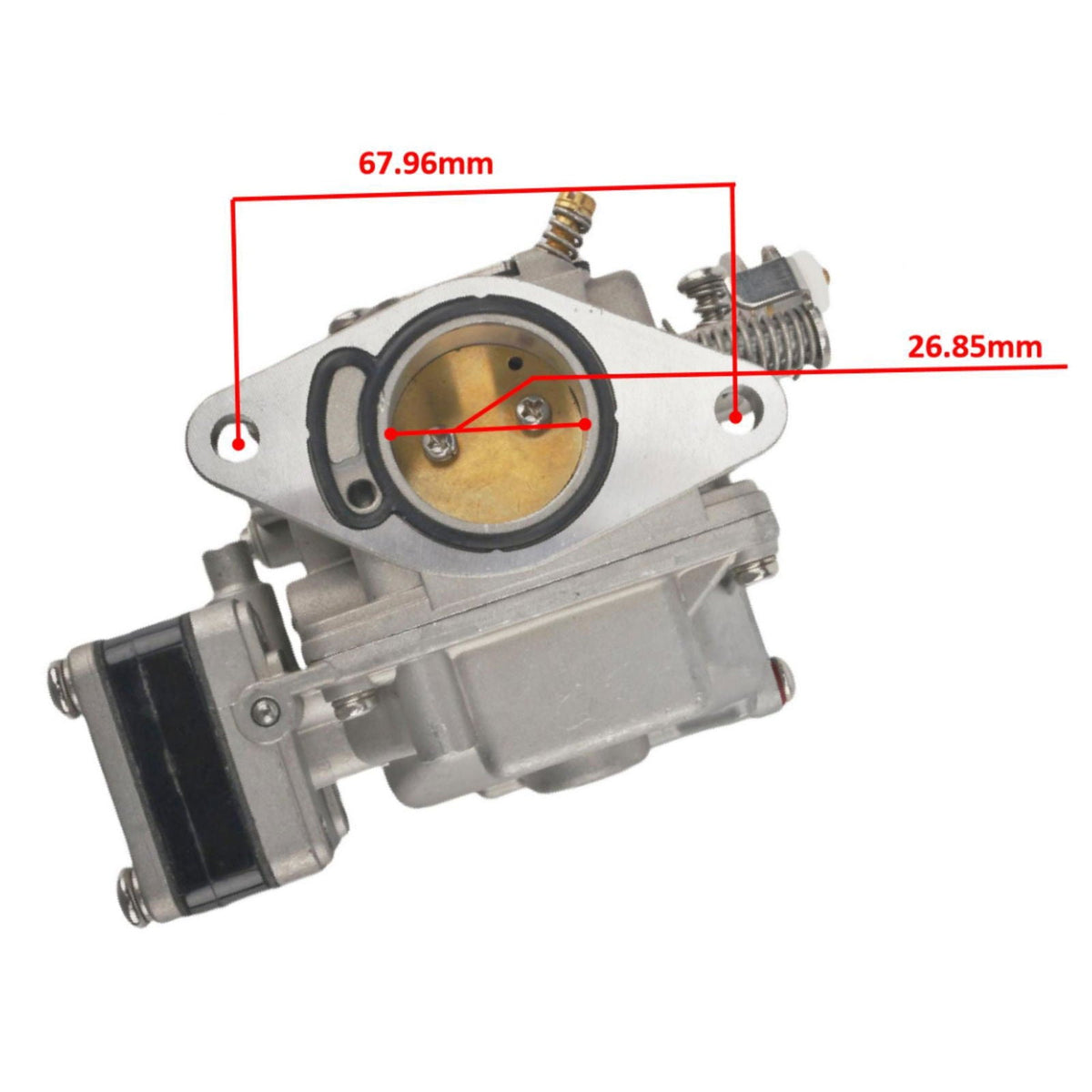

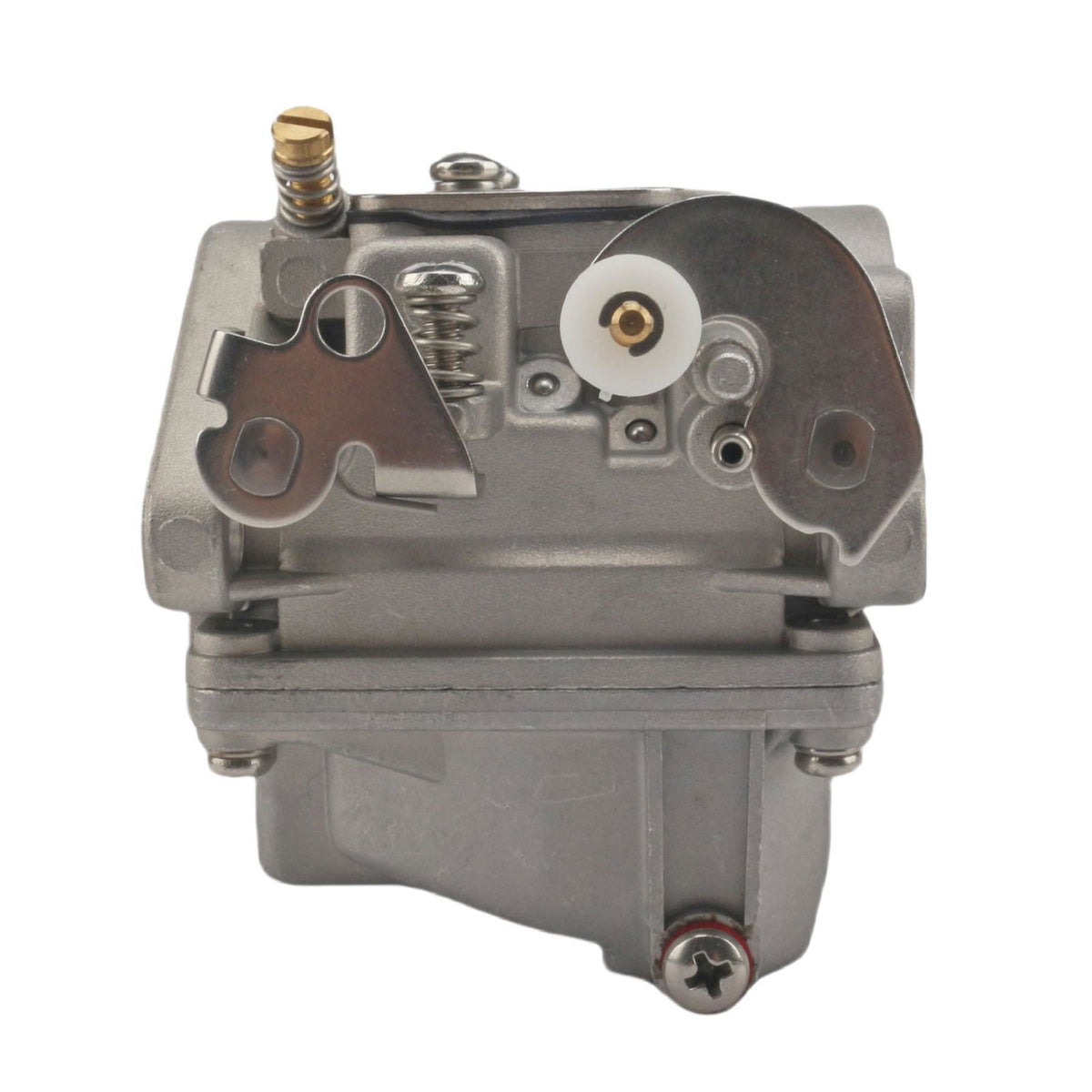

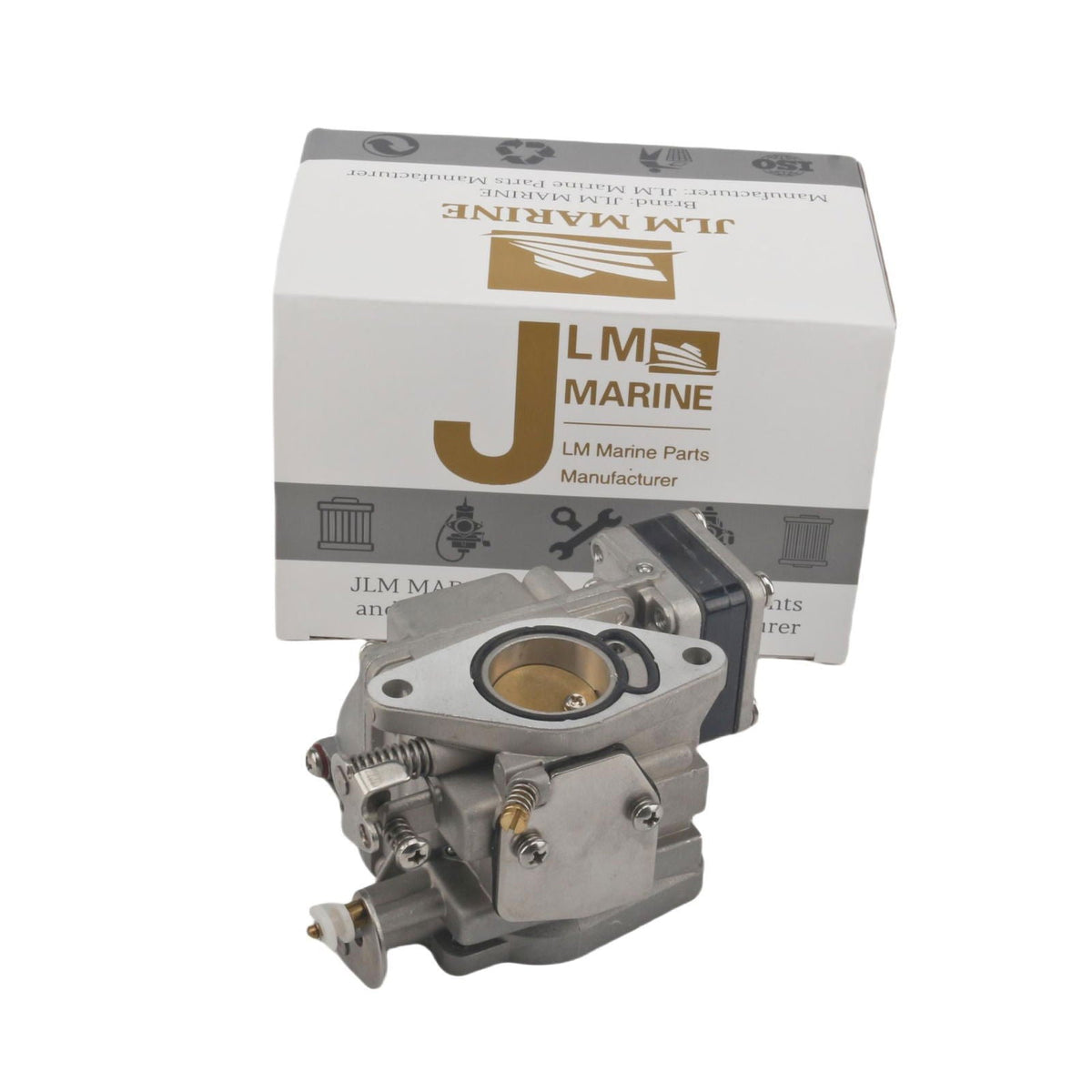

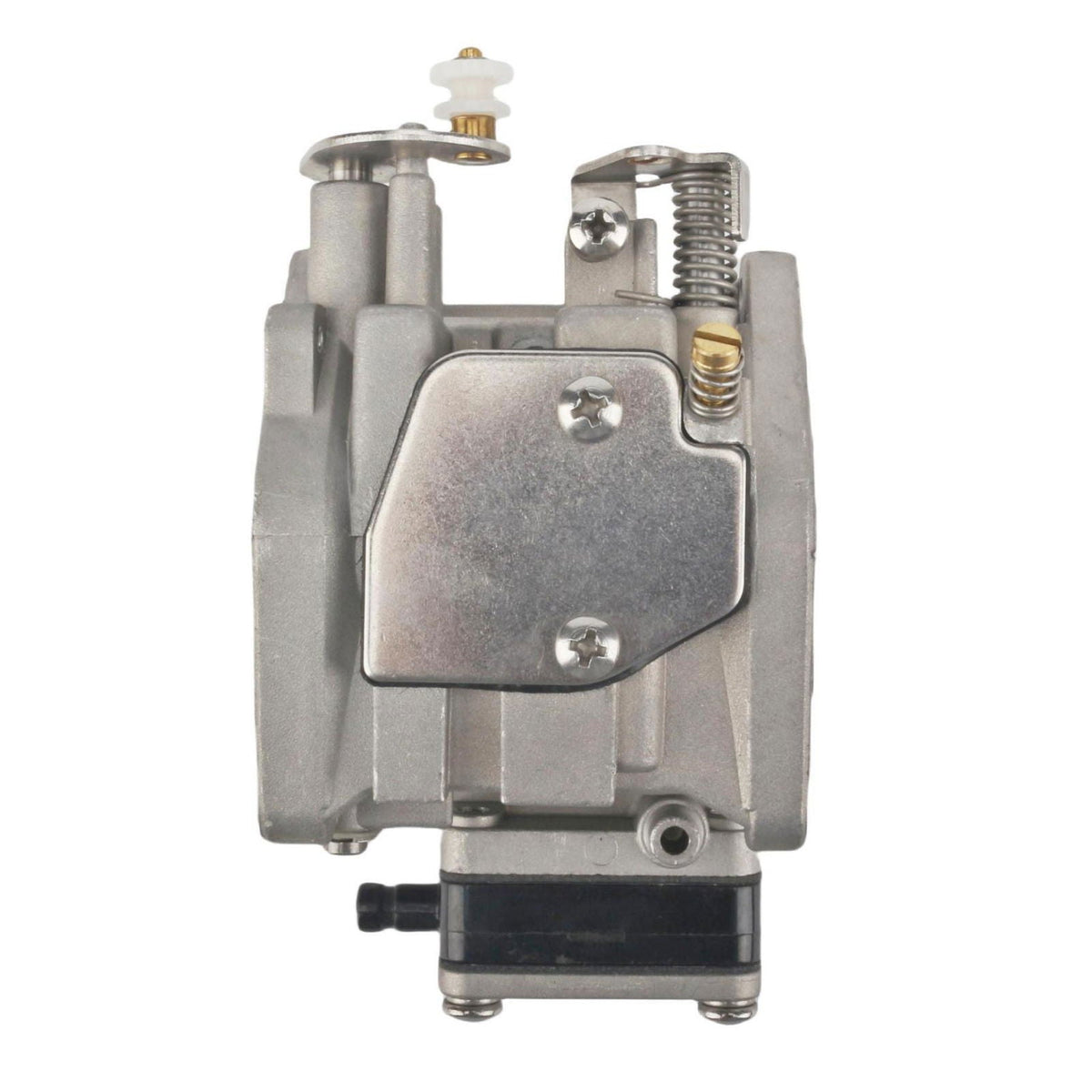

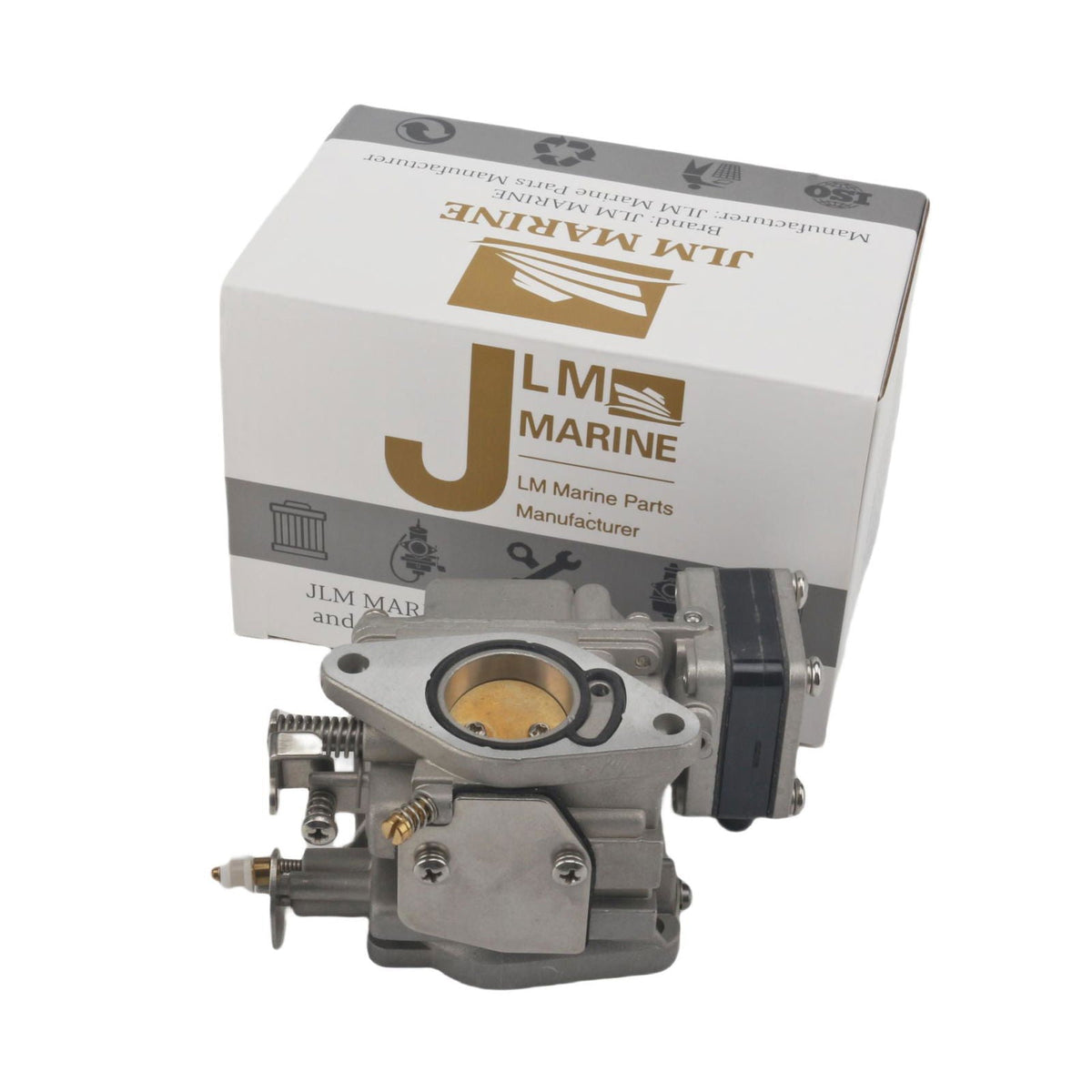

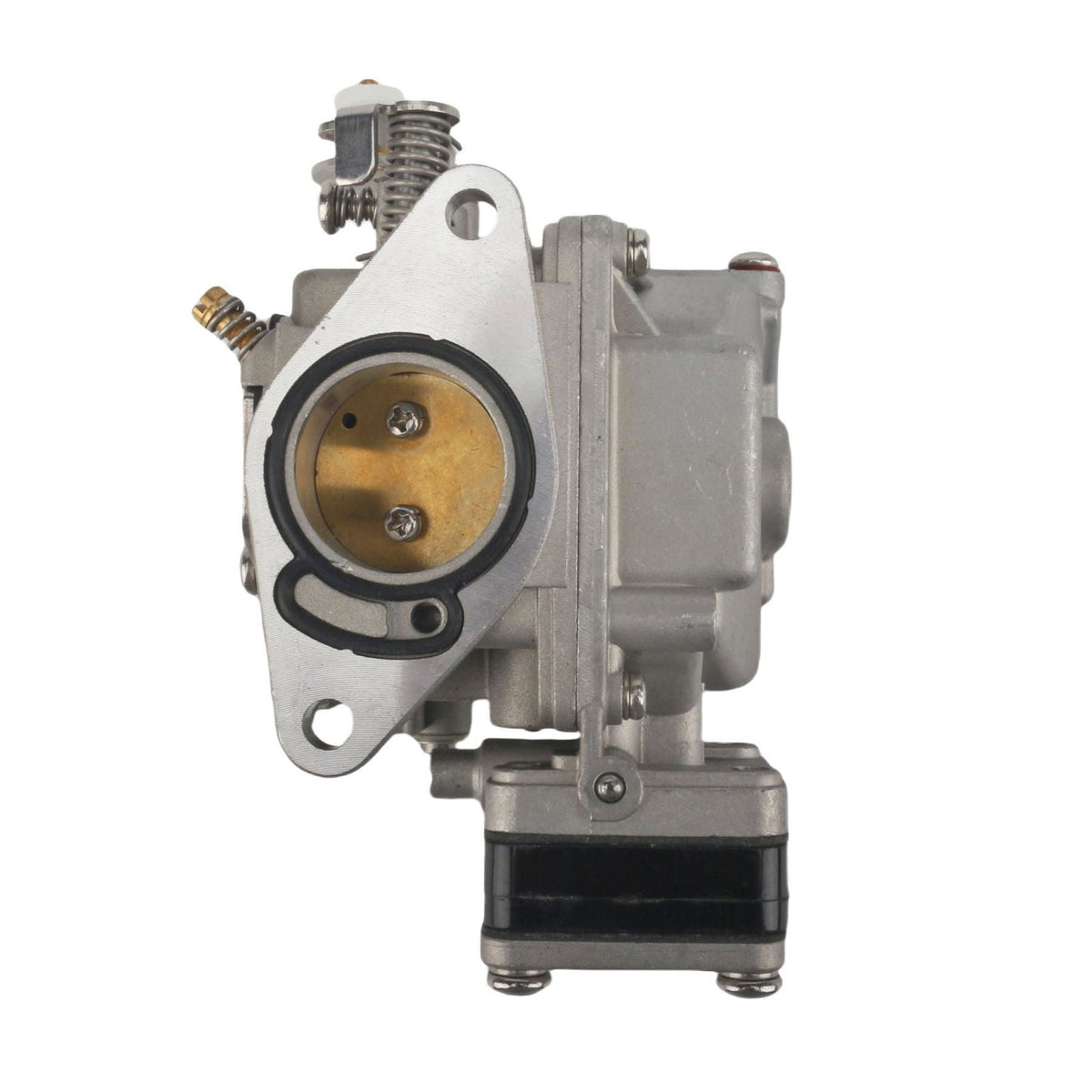

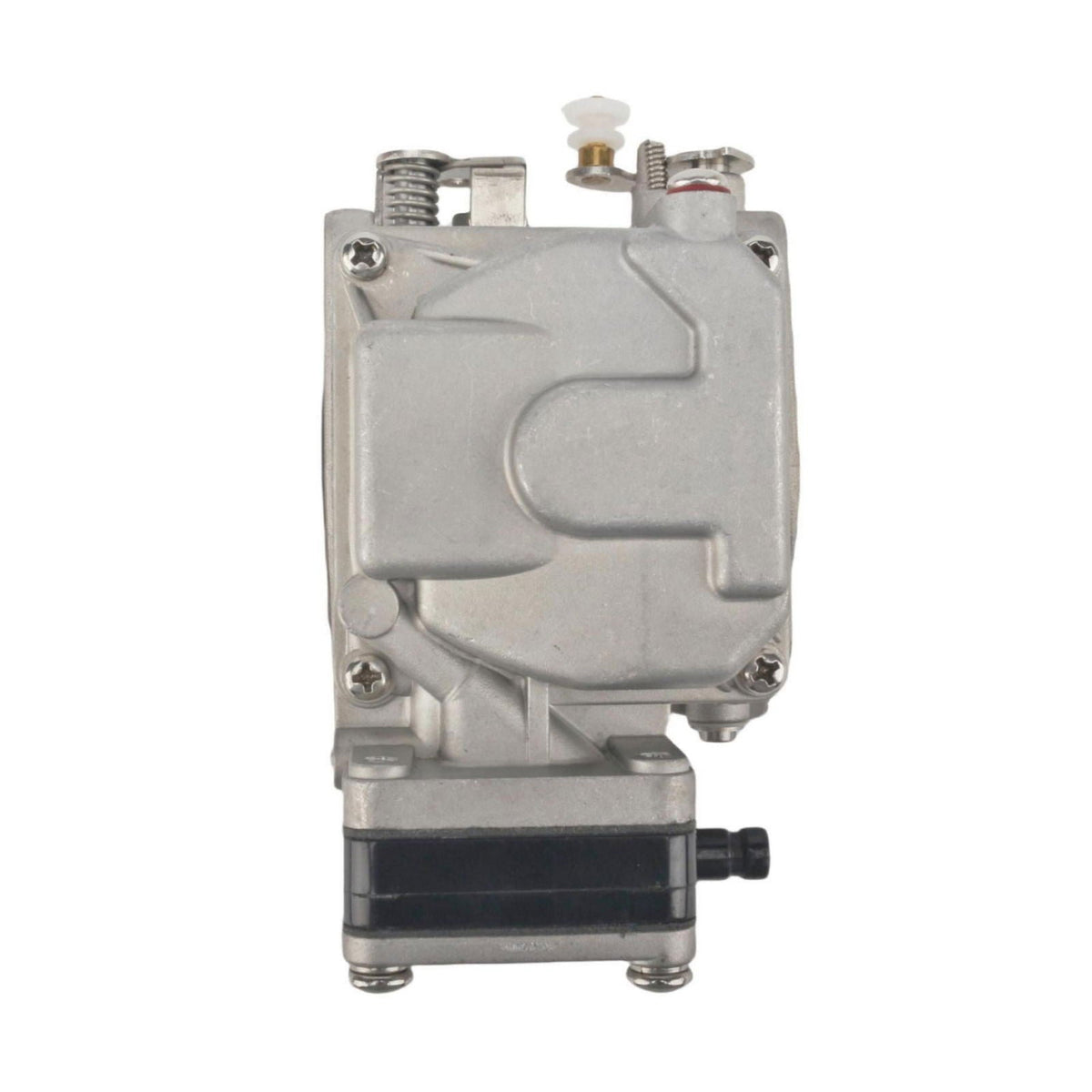

3LD-03100-1 Carburetor
This XR Marine product is a replacement carburetor associated with Nissan and Tohatsu marine outboard OEM reference numbers 3LD-03100-1, 3LD-03100-2, and 3LD03100M. It is supplied as a single carburetor unit (quantity: 1) rather than a carburetor repair kit.
It is intended for carburetor replacement where the required OEM reference number and exact engine configuration have been verified beforehand. Always check the complete part number including its suffix rather than selecting by horsepower or brand name alone.
Product Specifications
Key product details for identification and comparison.
Fitment
The 3LD-03100-1 Carburetor from XR Marine requires verification of the complete engine model, model year, and exact OEM reference number on your Nissan or Tohatsu marine outboard before ordering.
Match the complete model designation on your engine identification plate and compare the full carburetor reference number—including its suffix—against your official parts catalog. Do not select a replacement carburetor by horsepower or brand name alone, and do not assume that numbers such as 3LD-03100-0, 3LD-03100-1, 3LD-03100-2, and 3LD03100M are automatically interchangeable.
Fitment to Confirm
-
Brand: Nissan / Tohatsu Marine Outboard | Restriction: Confirm the complete engine model, model year, serial number range, and required carburetor number (3LD-03100-1, 3LD-03100-2, or 3LD03100M) before ordering; do not select by horsepower or brand name alone? Confirm fitment
OEM & Part Number References
Use the complete reference number, including its suffix, when comparing parts. Reference numbers do not confirm that every version is interchangeable.
What's Included
Check the supplied components before planning your repair.
- Carburetor — Quantity: 1 (Associated with OEM reference numbers 3LD-03100-1, 3LD-03100-2, 3LD03100M)
Installation Guide
General installation overview. Follow the service manual for your exact engine and carburetor configuration. Fuel-system work requires the appropriate skills and precautions.
- Preparation and Verification: Ensure the engine is shut off and cool, disconnect the ignition source, and isolate the fuel supply in a well-ventilated workspace away from open flames. Before removing the existing unit, compare the replacement carburetor's mounting flanges, throttle and choke linkage points, fuel inlet orientation, and reference markings against the original assembly.
- Removal and Installation: Document the routing of all fuel hoses, vent tubes, and linkage rods before disassembly. Remove the old carburetor according to your engine service manual, inspect the intake mating surfaces for cleanliness and damage, and install the new carburetor following the manual's specified fastening sequence and linkage connections.
- Fuel Inspection and Operational Check: Reconnect the fuel supply and inspect all hose connections and carburetor seams for any signs of fuel leakage before starting. Confirm that throttle and choke linkages move smoothly without binding. With proper cooling water supplied to the outboard, start the engine and perform any idle or mixture adjustments strictly according to the factory service manual. Shut down immediately if any fuel leak or abnormal operation occurs.
Before You Order
A careful fitment check helps you choose the right part the first time.
- Match the full engine model designation on the identification plate.
- Verify your engine's model year and serial-number details against your official parts catalog before ordering.
- Compare the complete OEM reference number, including its suffix. Horsepower or appearance alone is not enough.
- Confirm the package contents and the quantity needed for your repair.
- Do not treat 3LD-03100-0, 3LD-03100-1, 3LD-03100-2, and 3LD03100M as automatically interchangeable solely because the numbers look similar.
- Confirm that you require a complete replacement carburetor unit rather than an internal carburetor repair kit.
Need help checking fitment? Have your engine identification details, the existing part number and clear photos ready when you contact XR Marine.
Ask XR Marine About FitmentWhy XR Marine
Carburetors are our focus. Fitment comes first.
XR Marine specializes in marine carburetors, carburetor repair kits and the related parts needed for these repairs. We keep our focus on this product line so that product information stays centered on the details that matter: engine applications, complete part-number references and what is included.
Use our individual fitment entries and part references to compare your application, then contact XR Marine if you need help before ordering.
Shipping
Free shipping on all orders. No minimum order value.
For questions about delivery to your destination or delivery timing, contact XR Marine before placing your order.
Contact XR Marine About ShippingLifetime Warranty
XR Marine provides lifetime warranty coverage for product quality defects. Normal wear and tear is excluded.
- Covered: product quality defects.
- Not covered: normal wear and tear.
Contact XR Marine for warranty assistance. Having your order details and a description of the issue available can help us understand your request.
Contact XR Marine About WarrantyFrequently Asked Questions
Answers to common questions about this product and its application.
Is this product a complete carburetor or a carburetor repair kit?
This listing is for 1 replacement carburetor unit. It is not a carburetor repair kit or gasket set.
Which OEM reference numbers are associated with this carburetor?
This carburetor is primarily associated with Nissan / Tohatsu marine outboard OEM reference numbers 3LD-03100-1, 3LD-03100-2, and 3LD03100M. Additional cross-reference records include Nissan / Tohatsu 3LD-03100-0, 3C8-03181-0, 3C8-03182-0, 3C8-02011-0, and Sierra 18-7357.
Can I treat 3LD-03100-0, 3LD-03100-1, 3LD-03100-2, and 3LD03100M as automatically interchangeable?
No. Keep and compare the full number suffix when checking your parts catalog. Numbers such as 3LD-03100-0, 3LD-03100-1, 3LD-03100-2, and 3LD03100M must not be treated as interchangeable solely because they look similar.
Can I select this carburetor by my engine's horsepower or the Nissan/Tohatsu brand name alone?
No. Outboard engines of the same brand and horsepower can use different carburetor specifications across model years and configurations. Always confirm the complete engine model, model year, and required OEM carburetor number before ordering.
What should I send XR Marine if I need help confirming compatibility?
Please provide your complete engine model designation and serial number from the identification plate, the full part number stamped or listed for your existing carburetor, and clear photos of your current carburetor setup.
What shipping and warranty policies apply to this carburetor?
XR Marine offers free shipping on all orders with no minimum order value, along with a lifetime warranty covering product quality defects (normal wear and tear is excluded).
