Product Overview

XR MARINE · CARBURETORS & REPAIR KITS

6AH-W0093-00 Carburetor Repair Seal Kit Fits Yamaha Outboard F15C (15 HP), F20 (20 HP)

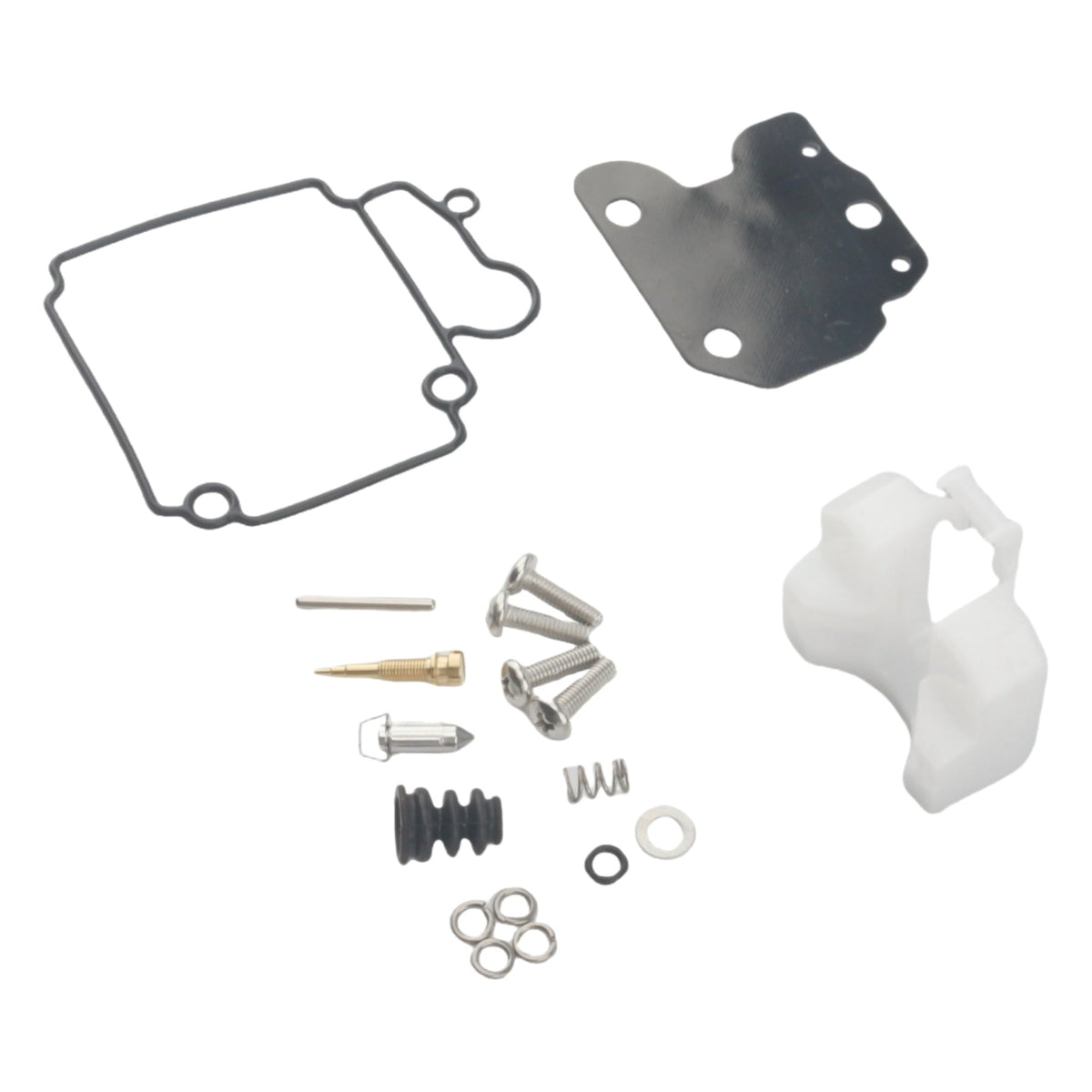

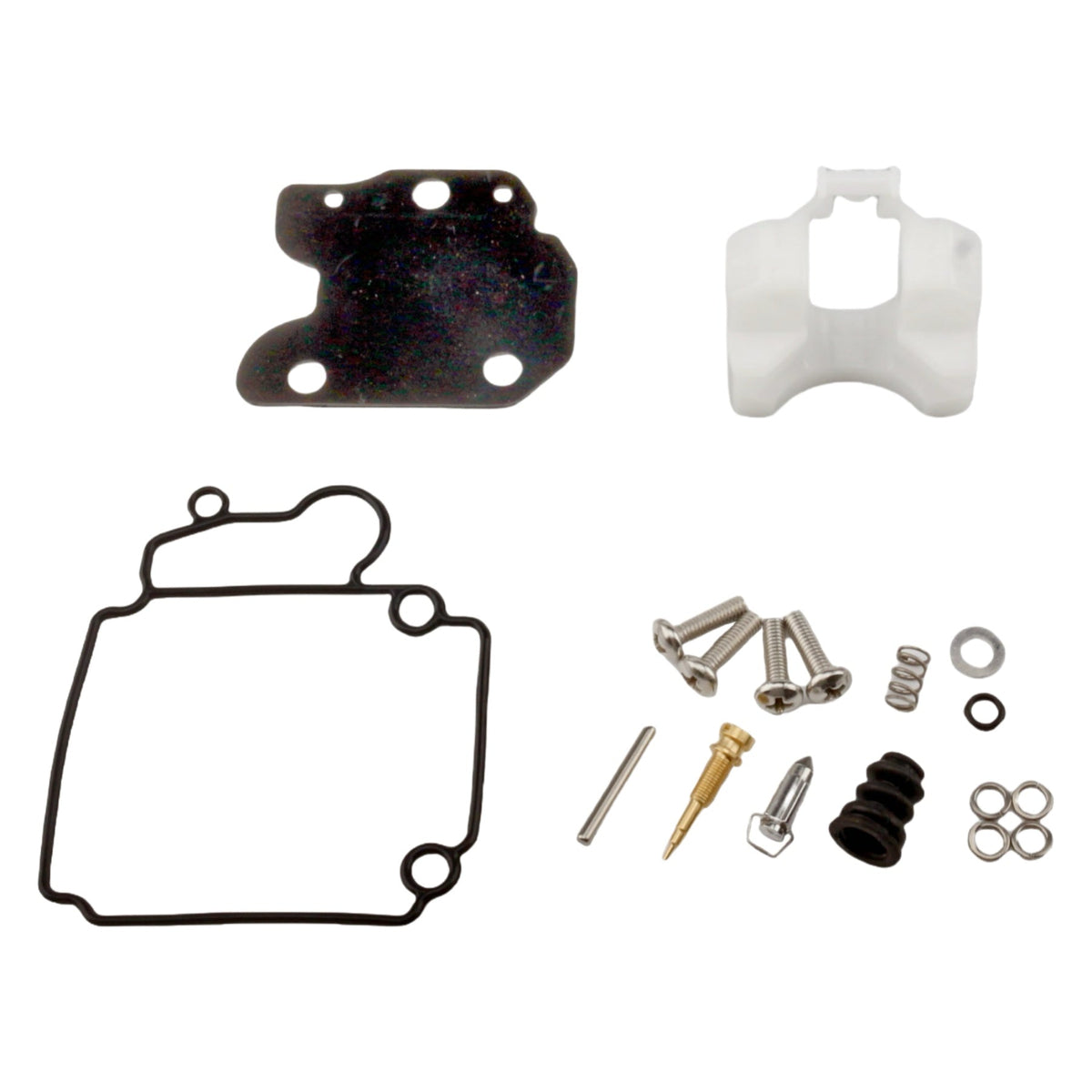

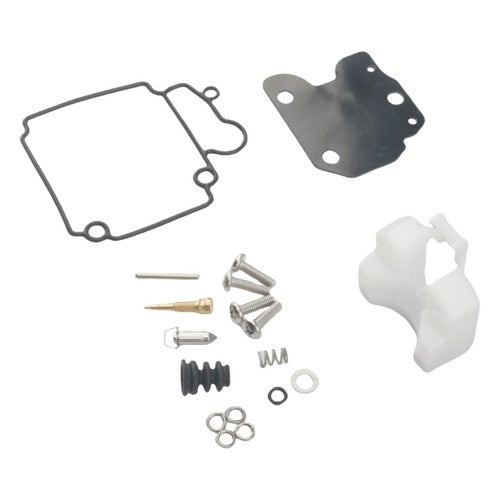

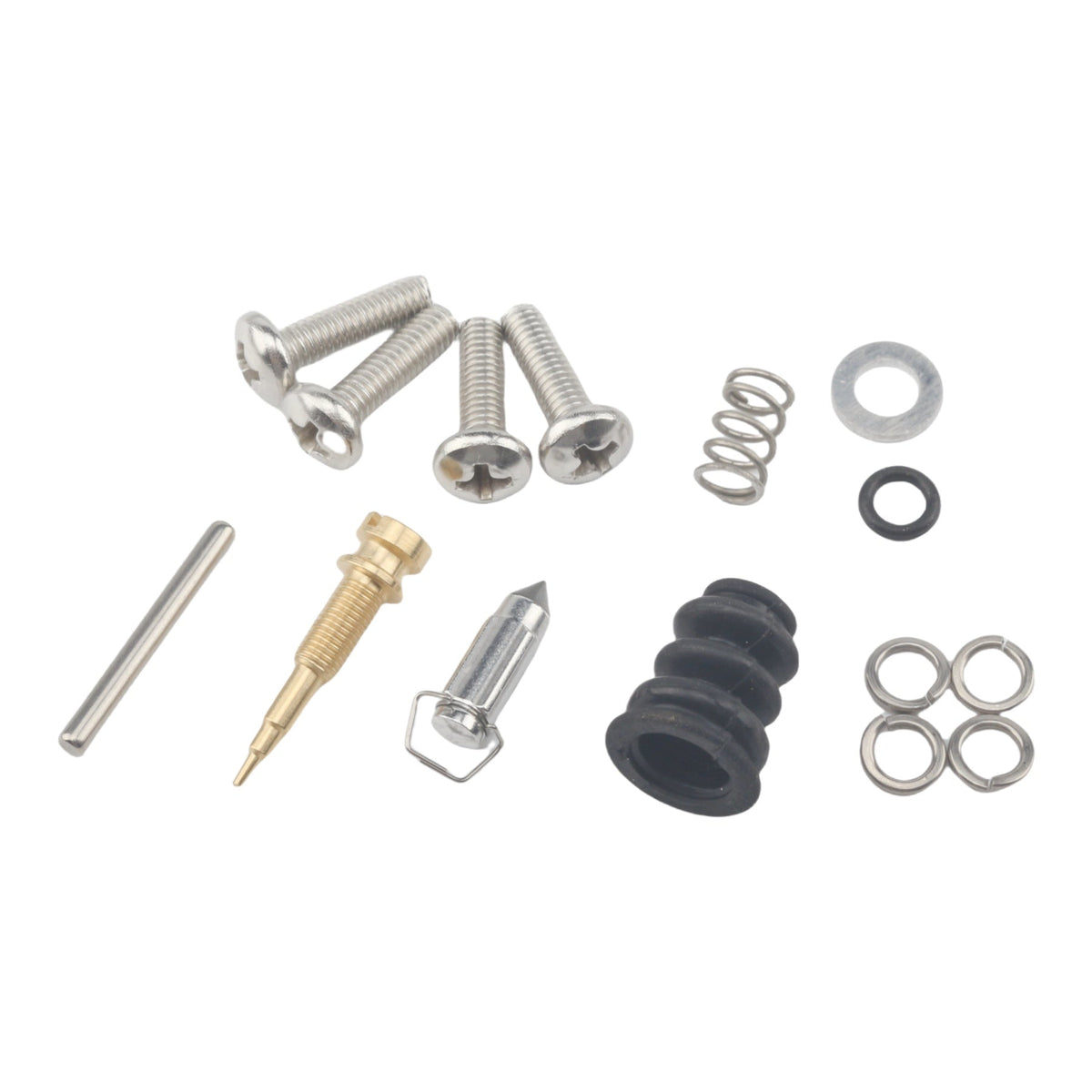

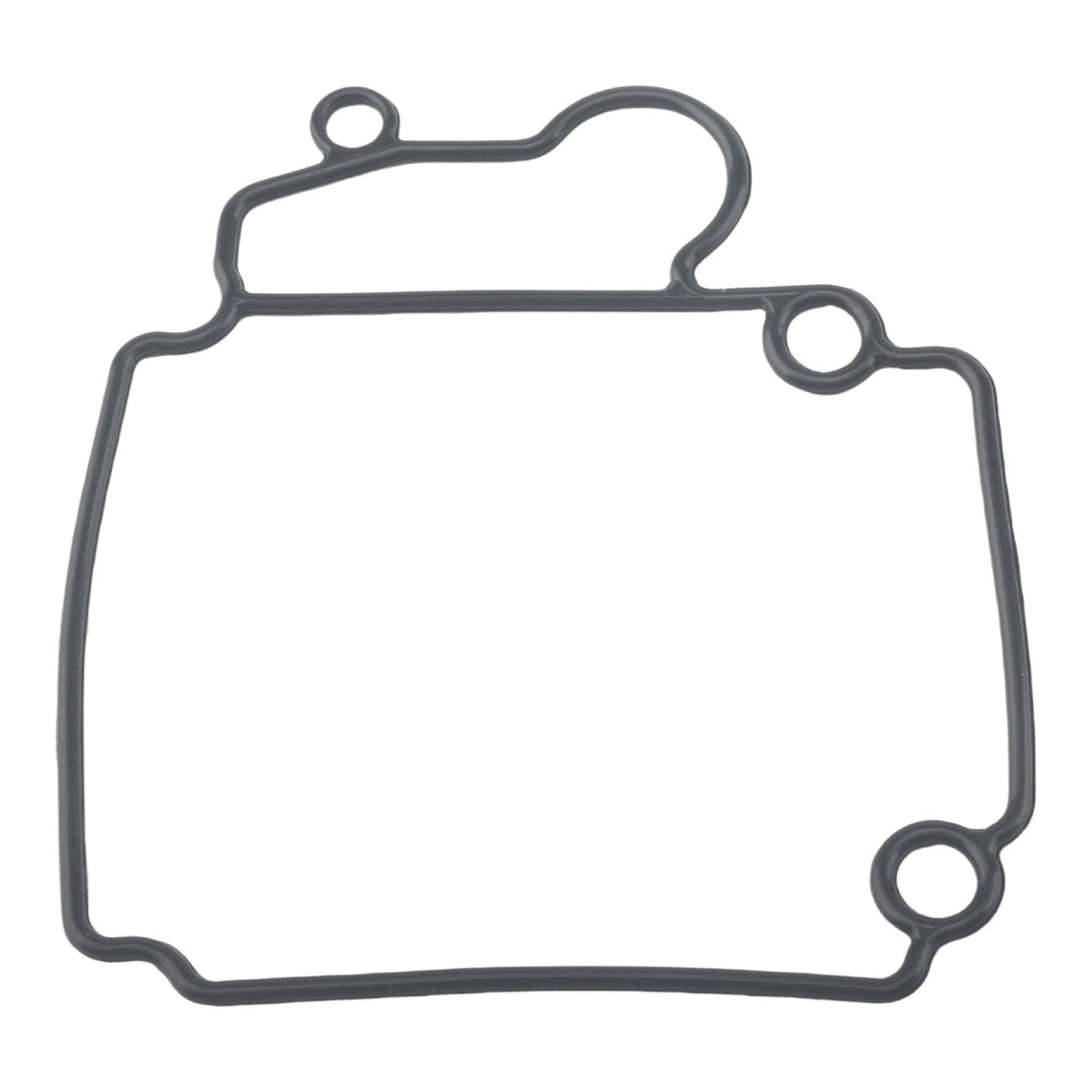

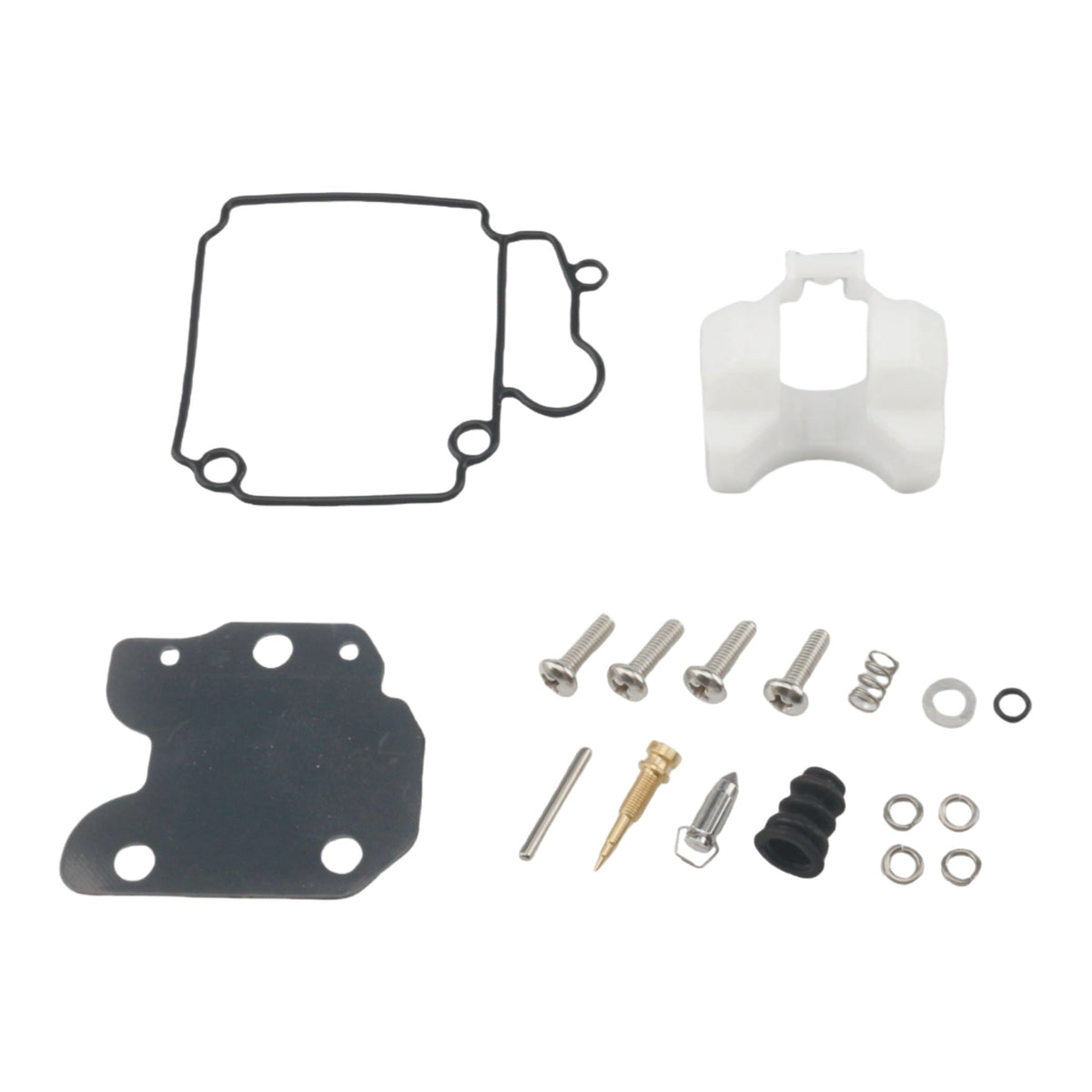

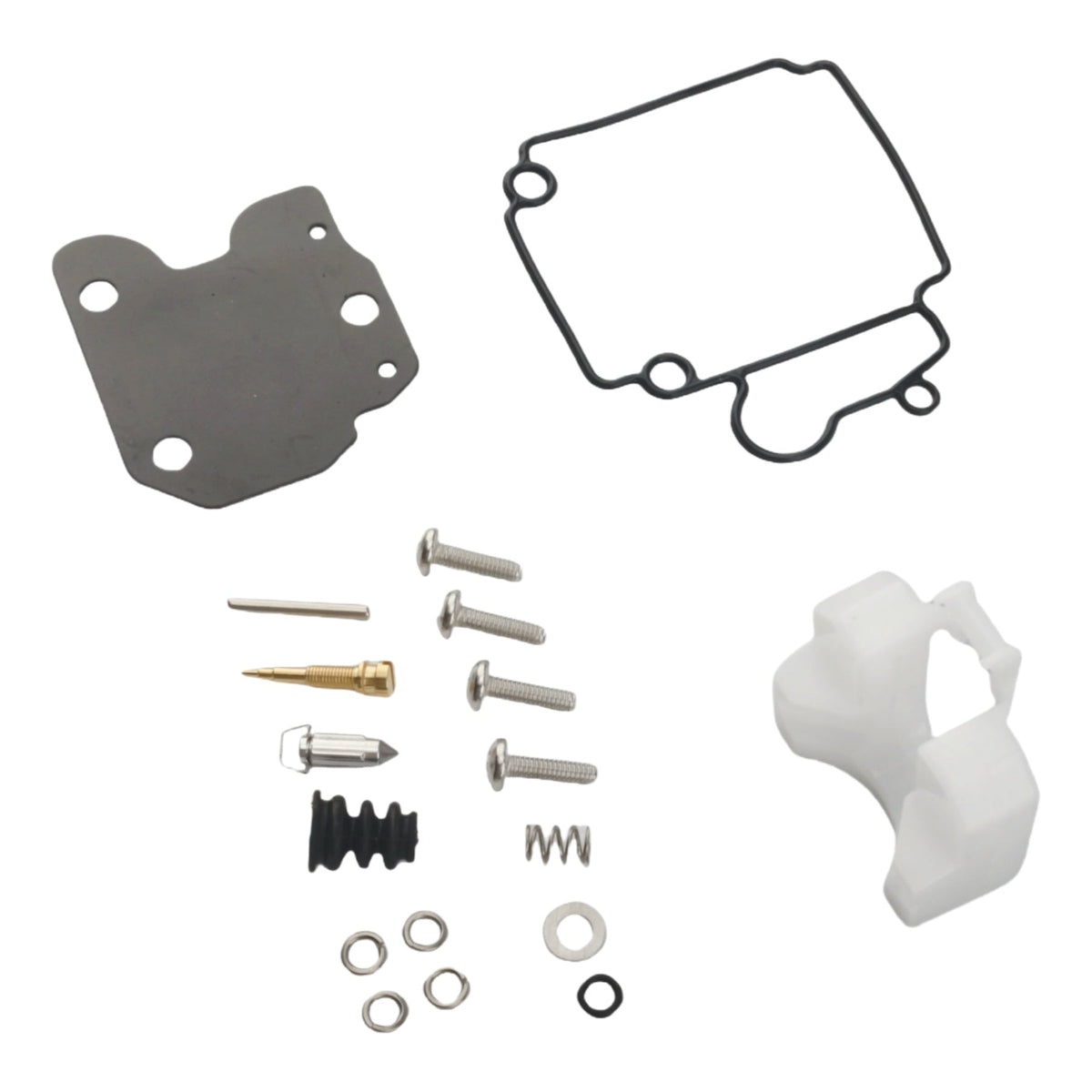

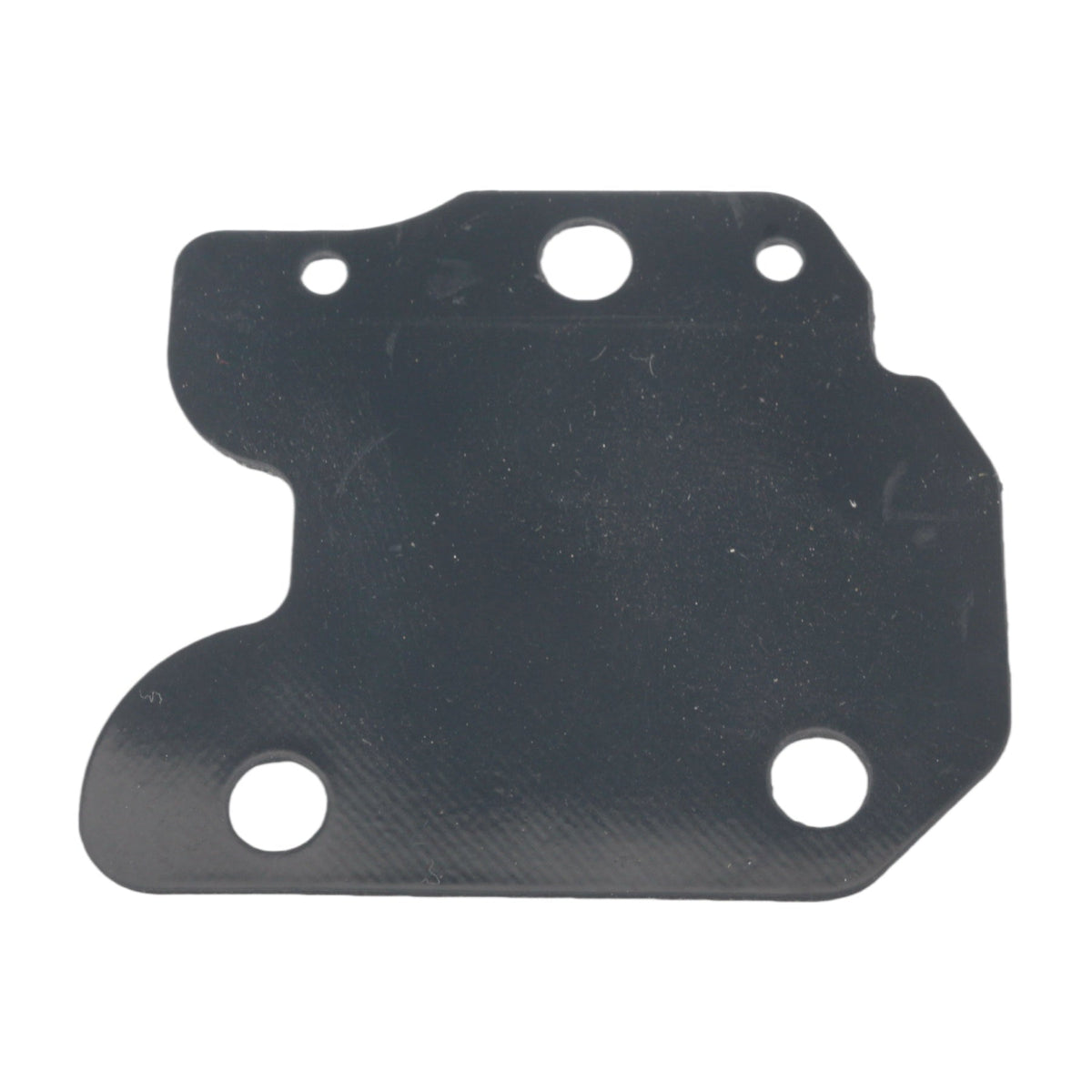

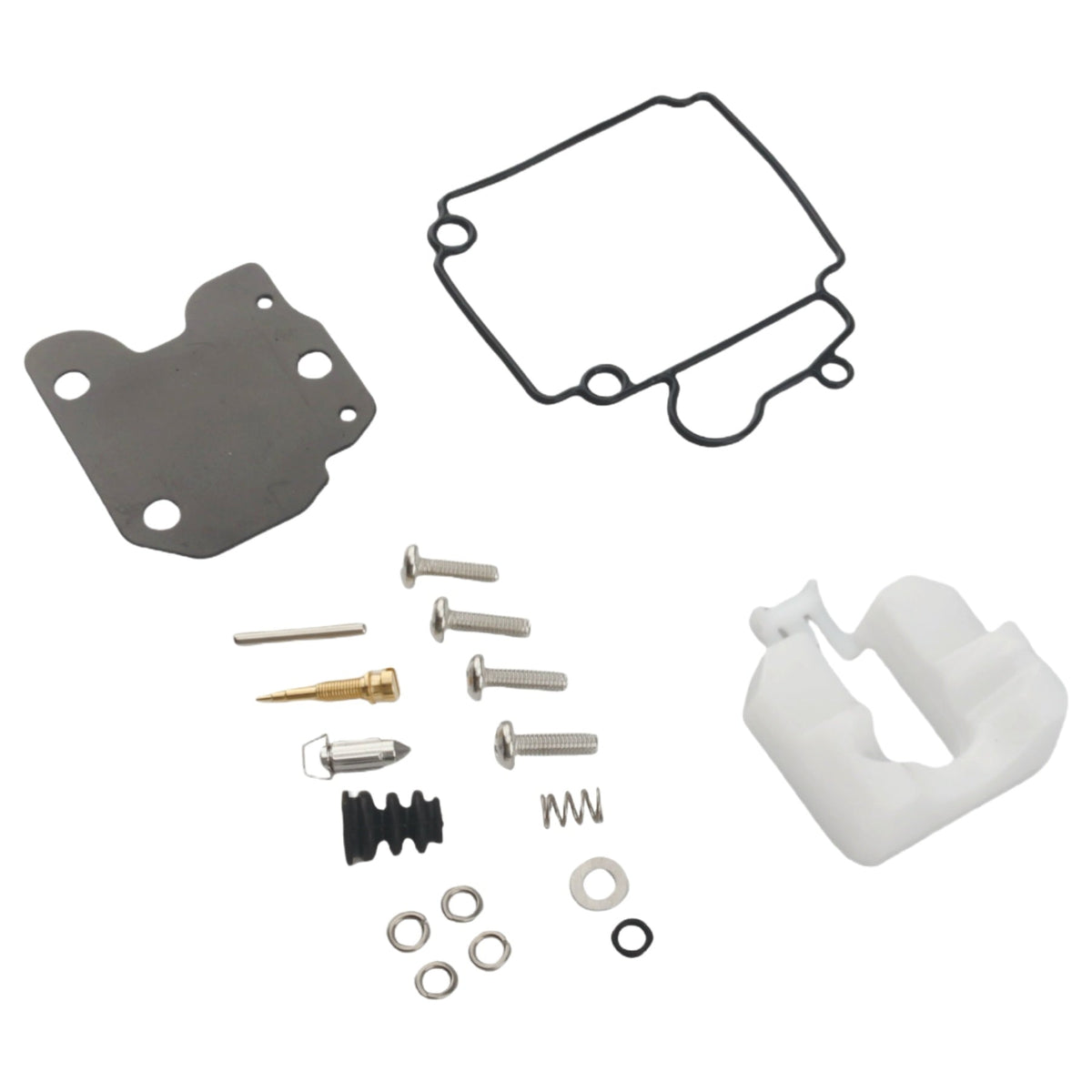

This XR Marine carburetor repair seal kit is designed for servicing the carburetor seals on matching Yamaha F15C (15 HP) and F20 (20 HP) 2-cylinder, 4-stroke outboards from model years 2006 through 2009. It is a repair kit for seal maintenance rather than a complete replacement carburetor assembly. Listed Yamaha Outboard OEM references include 6AH-W0093-00 and 6AH-W0093-00-00; always verify the complete model designation and required kit suffix before ordering.

Free shipping on all orders. Lifetime warranty for product quality defects. Normal wear and tear excluded.

Product Specifications

Key product details for identification and comparison.

Product Type Carburetor Repair Seal Kit
Brand XR Marine
Target Engine Brand Yamaha Outboard
Primary OEM Reference 6AH-W0093-00, 6AH-W0093-00-00
Additional Reference Numbers Yamaha Outboard: 6AH-W0093-01-00, 6AH-W0093-01 | GLM: 40682, 40683
Listed Engine Models F15C (15 HP), F20 (20 HP)
Engine Configuration 4-Stroke, 2-Cylinder

Fitment

The 6AH-W0093-00 Carburetor Repair Seal Kit from XR Marine fits Yamaha Outboard F15C (15 HP) and F20 (20 HP) 2-cylinder, 4-stroke outboards in the model-year applications listed below.

Match the complete model designation on your engine identification plate against the individual year entries below, and compare your required part number with 6AH-W0093-00 or 6AH-W0093-00-00. Horsepower alone cannot confirm compatibility; if your parts catalog specifies 6AH-W0093-01-00, verify the exact kit version required for your carburetor before ordering.

  • Brand: Yamaha Outboard | Model: F15C | Power: 15 HP | Year: 2006 | Stroke: 4-Stroke | Cylinders: 2
    ✓ Fits
  • Brand: Yamaha Outboard | Model: F15C | Power: 15 HP | Year: 2007 | Stroke: 4-Stroke | Cylinders: 2
    ✓ Fits
  • Brand: Yamaha Outboard | Model: F15C | Power: 15 HP | Year: 2008 | Stroke: 4-Stroke | Cylinders: 2
    ✓ Fits
  • Brand: Yamaha Outboard | Model: F15C | Power: 15 HP | Year: 2009 | Stroke: 4-Stroke | Cylinders: 2
    ✓ Fits
  • Brand: Yamaha Outboard | Model: F20 | Power: 20 HP | Year: 2006 | Stroke: 4-Stroke | Cylinders: 2
    ✓ Fits
  • Brand: Yamaha Outboard | Model: F20 | Power: 20 HP | Year: 2007 | Stroke: 4-Stroke | Cylinders: 2
    ✓ Fits
  • Brand: Yamaha Outboard | Model: F20 | Power: 20 HP | Year: 2008 | Stroke: 4-Stroke | Cylinders: 2
    ✓ Fits
  • Brand: Yamaha Outboard | Model: F20 | Power: 20 HP | Year: 2009 | Stroke: 4-Stroke | Cylinders: 2
    ✓ Fits

OEM & Part Number References

Use the complete reference number, including its suffix, when comparing parts. Reference numbers do not confirm that every version is interchangeable.

Brand Reference Number & Notes
Yamaha Outboard 6AH-W0093-00 (Primary OEM reference)
Yamaha Outboard 6AH-W0093-00-00 (Primary OEM reference)
Yamaha Outboard 6AH-W0093-01-00 (Reference number — confirm exact kit version before ordering)
Yamaha Outboard 6AH-W0093-01 (Reference number — confirm exact kit version before ordering)
GLM 40682 (Reference number)
GLM 40683 (Reference number)

Installation Guide

General installation overview. Follow the service manual for your exact engine and carburetor configuration. Fuel-system work requires the appropriate skills and precautions.

  1. Preparation & Identification: Shut off the engine, allow it to cool completely, disconnect the ignition and fuel supply according to your Yamaha service manual, and work in a well-ventilated area away from ignition sources. Verify the engine identification plate and compare the supplied seal kit parts against your existing carburetor components before disassembly.
  2. Disassembly & Seal Servicing: Document fuel hose and linkage routing, then disassemble the carburetor sections as directed by the factory service manual. Clean the sealing surfaces carefully without damaging machined passages, and install only the supplied seals and components that match your specific carburetor configuration.
  3. Reassembly & Leak Inspection: Reassemble the carburetor and reinstall it on the outboard following the procedures and specifications in your service manual. Reconnect the fuel line, prime the system to check for any fuel seepage or linkage binding, and perform test runs only with the proper cooling water supply attached. Stop immediately if any leak or abnormal operation occurs.

Before You Order

A careful fitment check helps you choose the right part the first time.

  • Match the full engine model designation on the identification plate.
  • Check the individual year entry and any serial-number or version restrictions.
  • Compare the complete OEM reference number, including its suffix. Horsepower or appearance alone is not enough.
  • Confirm the package contents and the quantity needed for your repair.
  • If your parts catalog calls for 6AH-W0093-01-00 rather than 6AH-W0093-00 or 6AH-W0093-00-00, confirm the correct kit version for your engine before ordering.
  • Verify that you need a carburetor repair seal kit and not a complete replacement carburetor assembly.

Need help checking fitment? Have your engine identification details, the existing part number and clear photos ready when you contact XR Marine.

Ask XR Marine About Fitment

Why XR Marine

Carburetors are our focus. Fitment comes first.

XR Marine specializes in marine carburetors, carburetor repair kits and the related parts needed for these repairs. We keep our focus on this product line so that product information stays centered on the details that matter: engine applications, complete part-number references and what is included.

Use our individual fitment entries and part references to compare your application, then contact XR Marine if you need help before ordering.

Shipping

Free shipping on all orders. No minimum order value.

For questions about delivery to your destination or delivery timing, contact XR Marine before placing your order.

Contact XR Marine About Shipping

Lifetime Warranty

XR Marine provides lifetime warranty coverage for product quality defects. Normal wear and tear is excluded.

  • Covered: product quality defects.
  • Not covered: normal wear and tear.

Contact XR Marine for warranty assistance. Having your order details and a description of the issue available can help us understand your request.

Contact XR Marine About Warranty

Frequently Asked Questions

Answers to common questions about this product and its application.

Which Yamaha outboard models does this carburetor repair seal kit fit?

This kit fits Yamaha Outboard F15C (15 HP) and F20 (20 HP) 2-cylinder, 4-stroke engines from model years 2006, 2007, 2008, and 2009. Always match your exact model code and year rather than selecting by horsepower alone.

Is this a complete carburetor assembly or a repair seal kit?

This product is a carburetor repair seal kit for servicing carburetor seals on compatible Yamaha F15C and F20 outboards. It is not a complete replacement carburetor assembly.

What if my Yamaha parts catalog calls for 6AH-W0093-01-00 instead of 6AH-W0093-00?

The primary OEM references for this kit are 6AH-W0093-00 and 6AH-W0093-00-00. Although 6AH-W0093-01-00 and 6AH-W0093-01 appear in cross-reference records, suffix changes can indicate version differences. If your engine specifically requires 6AH-W0093-01-00, confirm the correct kit version before ordering.

How can I check the exact components included in the package?

An itemized component list is not specified in the current product data. Please contact XR Marine before ordering to confirm the exact supplied contents for your repair.

Do I need a service manual to install this seal kit?

Yes. Always follow the official Yamaha Outboard service manual for your specific F15C or F20 model year to ensure proper disassembly, seal placement, reassembly, and post-installation fuel leak checks.

What shipping and warranty policies apply to this order?

XR Marine offers free shipping on all orders with no minimum order value, along with a lifetime warranty covering product quality defects (normal wear and tear is excluded).
